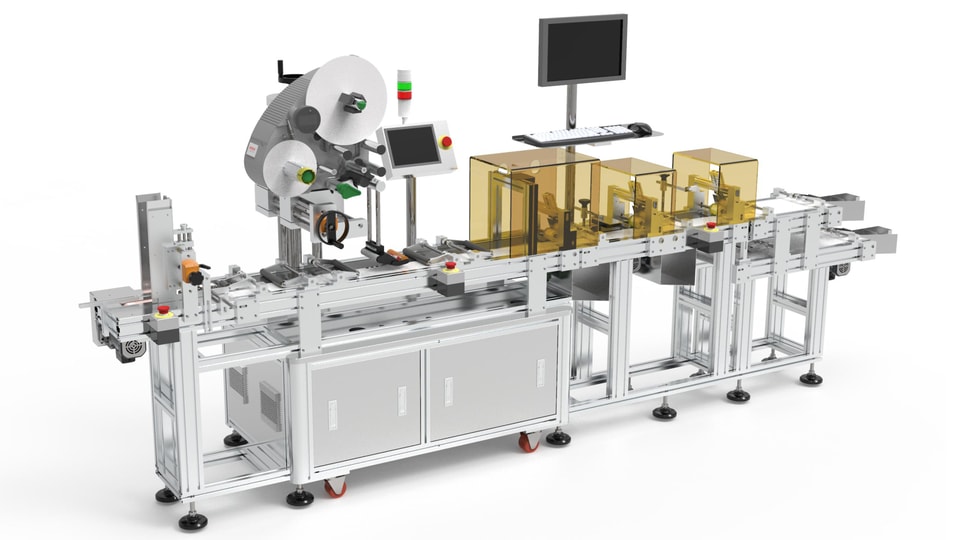

Paper Book Paging&Labeling Machine

Machine Features Introduction

1. SKILT PM-DPM Series Label Applicator applies labels onto flat surfaces featuring with loading platform and high friction belting.

2. With different kinds auto outfeed for choose,suit for client differnet kinds products, such as unassembled box/carton/corrugated cardboard;

3. Machine store up to 100 different product profiles consisting of different label sizes,speed and location of label placement within the machines memory for quick recall during changeover.



WHAT DOES IT HAVE?


1. Novexx Label Head Model ALS204 for 130′ or 40m/minute dispense speed

2. Label Counter, Missing Label Detection and Auto Teach

3. +/- 1 mm Label Placement Accuracy

4. High Friction Conveyor Belt

5. Speed Encoder to lock label dispense speed with conveyor speed

6. Loading Platform for speedy loading of bags. (100+ pcs/min)

7. Fully Adjustable Guide Railing for Quick Changeover

WHAT COULD IT HAVE?


1. Up to 6″ Label width with the ALS206 label head

2. Up to 9″ Label Width with the ALS209 label head

3. Different kinds out feed collection way for choose

4. Hot Stamp Coder or Inkjet Coder

5. Online Print Applicator

6. Conveyor width and length modification

7. One more Applicator for two stickers

 MACHINE FUNCTION INTRODUCTION


 1.  Feeder:  Paging device, can put papers into feeding device,  delivery out one by one；

 2.  Labeling:  When paper delivery to the labeling position, past sticker on paper surface directly;
      Labeling engine with SKILT Servo control and German Novexx ALS204 for choose.

3.  Collection:  After finish labeling, delviery to the end part for collection. Collection with different kinds for client choose.
