Unfolding Box Labeling Machine

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout


Machine Features Introduction

1. SKILT PM-DPM Series Label Applicator applies labels onto flat surfaces featuring with loading platform and high friction belting.

2. With different kinds auto outfeed for choose,suit for client differnet kinds products, such as unassembled box/carton/corrugated cardboard;

3. Machine store up to 20 different product profiles consisting of different label sizes,speed and location of label placement within the machines memory for quick recall during changeover.



1. Novexx Label Head Model ALS204 for 130′ or 40m/minute dispense speed

2. Label Counter, Missing Label Detection and Auto Teach

3. +/- 1 mm Label Placement Accuracy

4. High Friction Conveyor Belt

5. Speed Encoder to lock label dispense speed with conveyor speed

6. Loading Platform for speedy loading of bags. (100+ pcs/min)

7. Fully Adjustable Guide Railing for Quick Changeover


1. Up to 6″ Label width with the ALS206 label head

2. Up to 9″ Label Width with the ALS209 label head

3. Different kinds out feed collection way for choose

4. Hot Stamp Coder or Inkjet Coder

5. Online Print Applicator

6. Conveyor width and length modification

7. One more Applicator for two stickers

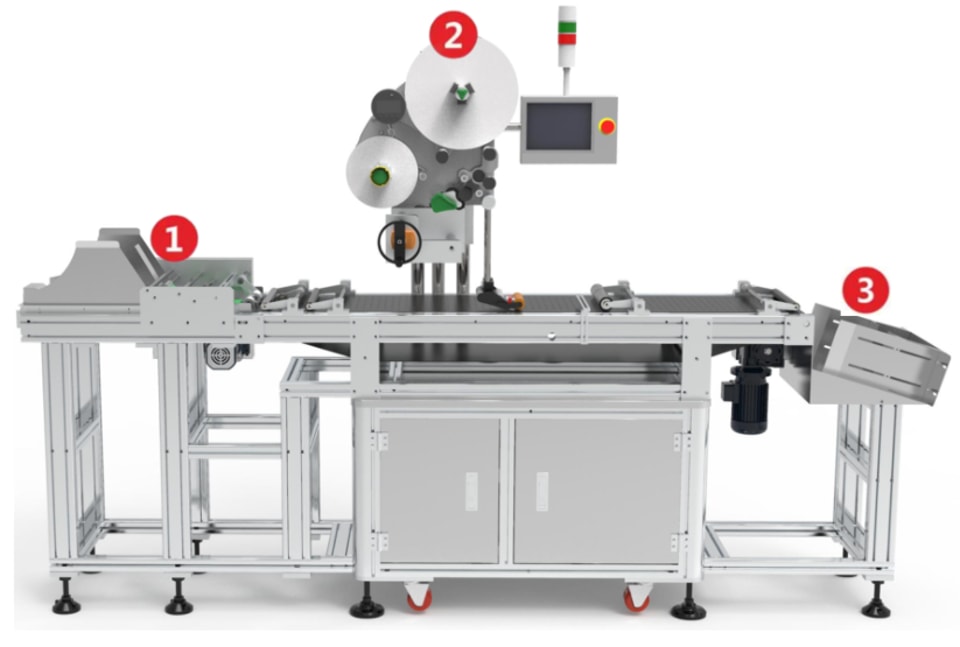

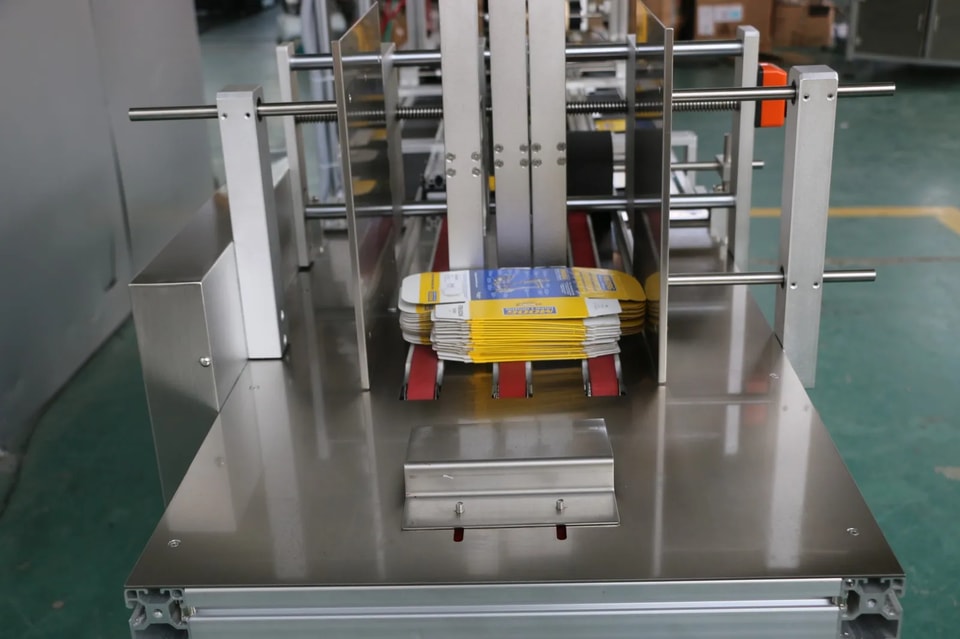

 1.  Feeder:  Paging device, can put labeling objects (for example box) into feeder device,  delivery out one by one;

 2.  Labeling:  When bag delivery to the labeling position, past sticker on bag surface directly;
      Labeling engine with SKILT Servo control and German Novexx ALS204 for choose.

3.  Collection:  After finish labeling, delviery to the end part for collection. Collection with different kinds for client choose.

No Name Brand
1 PLC control system SIEMENS
2 Touch-screen SIEMENS
3 Labeling engine control system PANISONIC & GERMAN NOVEXX
4 Labeling engine Drive PANISONIC
5 Frequency converter DELTA
6 Check box sensor Japan KEYENCE
7 Check label sensor German Leuze
8 Main transport motor JSCC
Model PM-DPM-A & PM-DPM-ALS204
Driving Model Servo system & German Novexx
Label material Self-adhesive sticker, opaque or transparent label
Yield(pcs/min) 50-200pcs/min
Suitable label size L:15-300mm,W:15-300mm
Suitable box size L:20-300mm , W:30-300mm
Voltage 110V/220V/380V
Machine size 2200(L)×  800(W)×  1600 (H) mm



1. German NOVEXX Labeling engine


Machine with two years warranty;

Supply operation training for client workers ;

If with quality problem, provide technical support and supply wearing parts timely ;

④ Range experienced engineer come to client company for installation;
