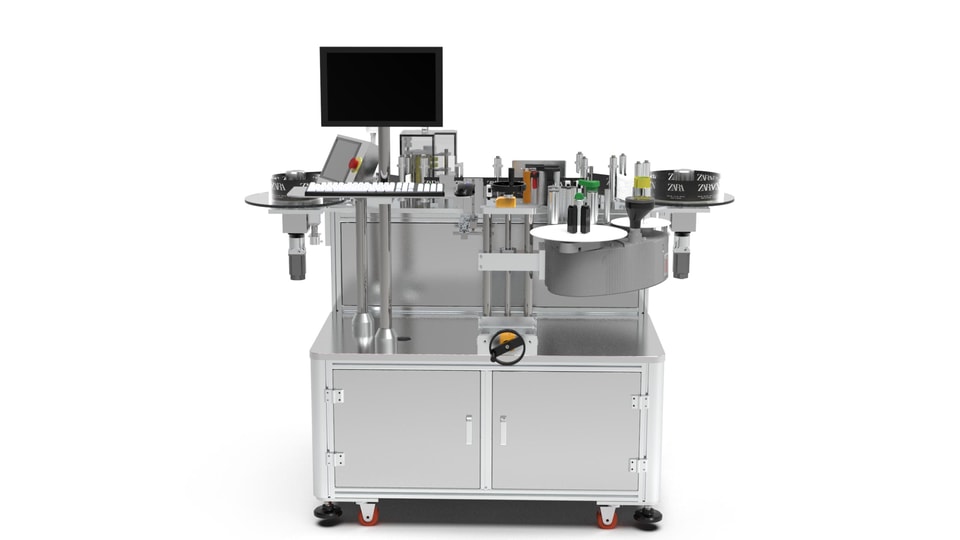

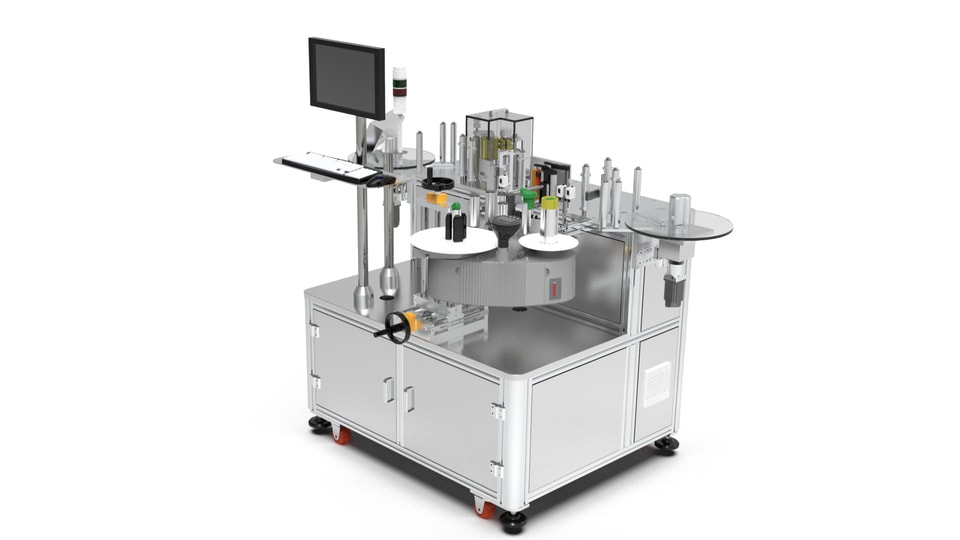

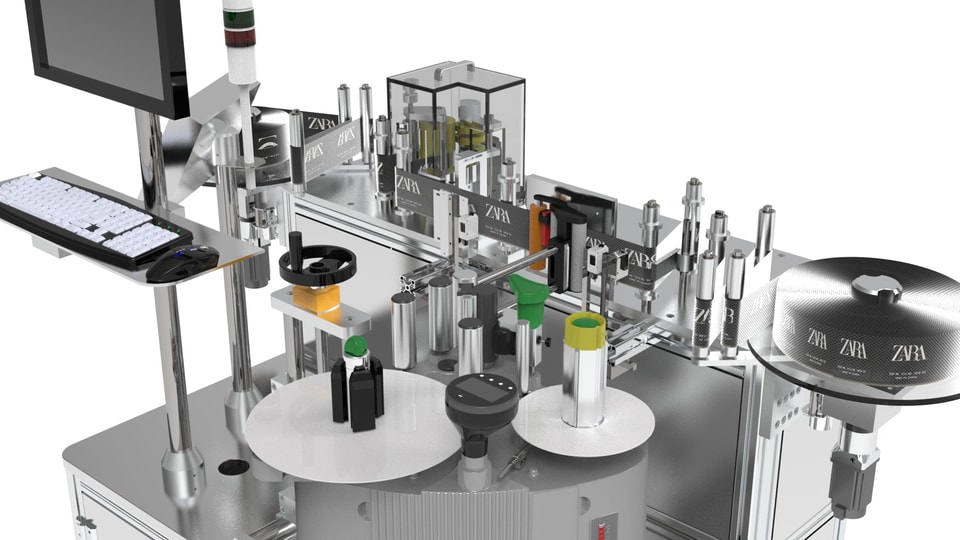

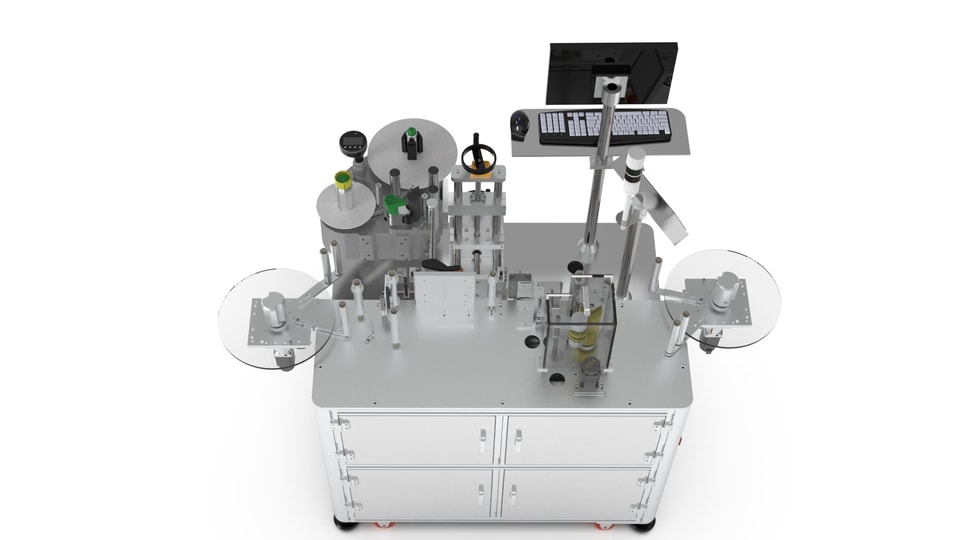

Woven tag label applicator
ZARA Woven Label Project Introduction
SKILT Have cooperate with AD ll Checkpoint ll Unitex ll Uniter ll Yokohama for mare than 30 sets woven label roll to roll applicator since 2018.
Project Description

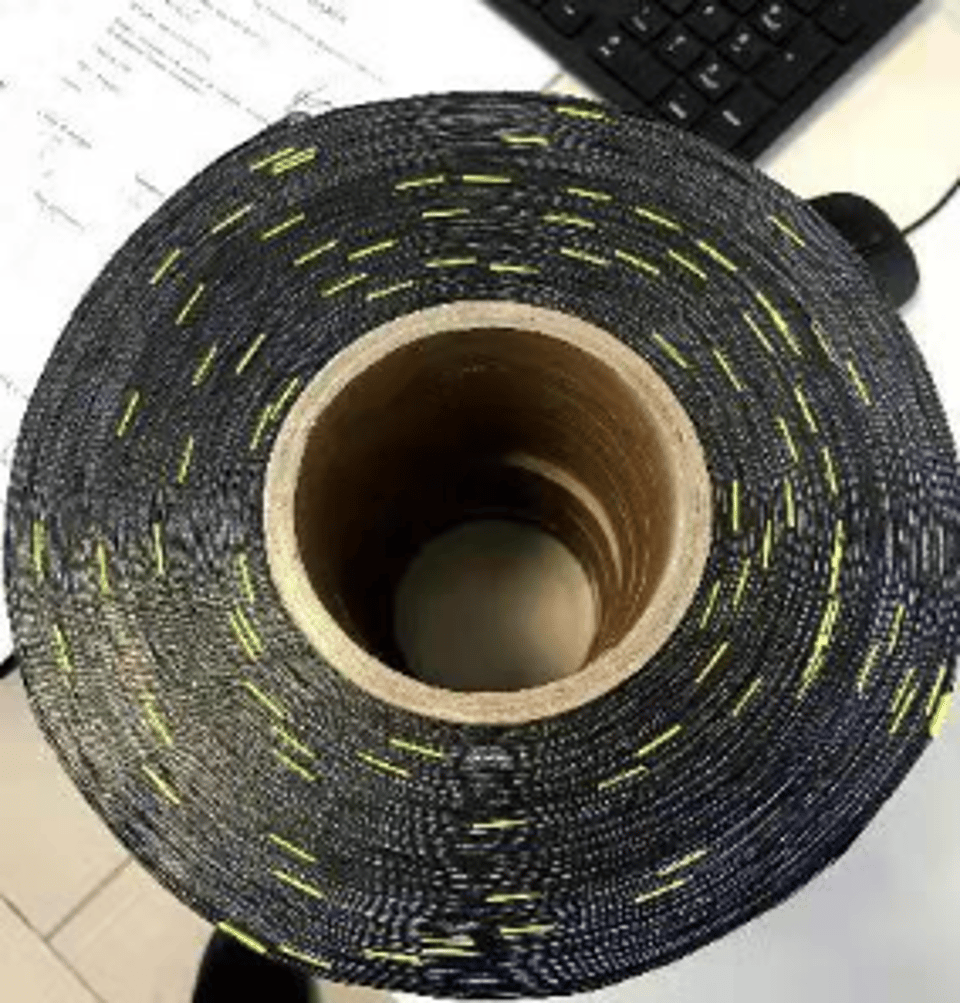

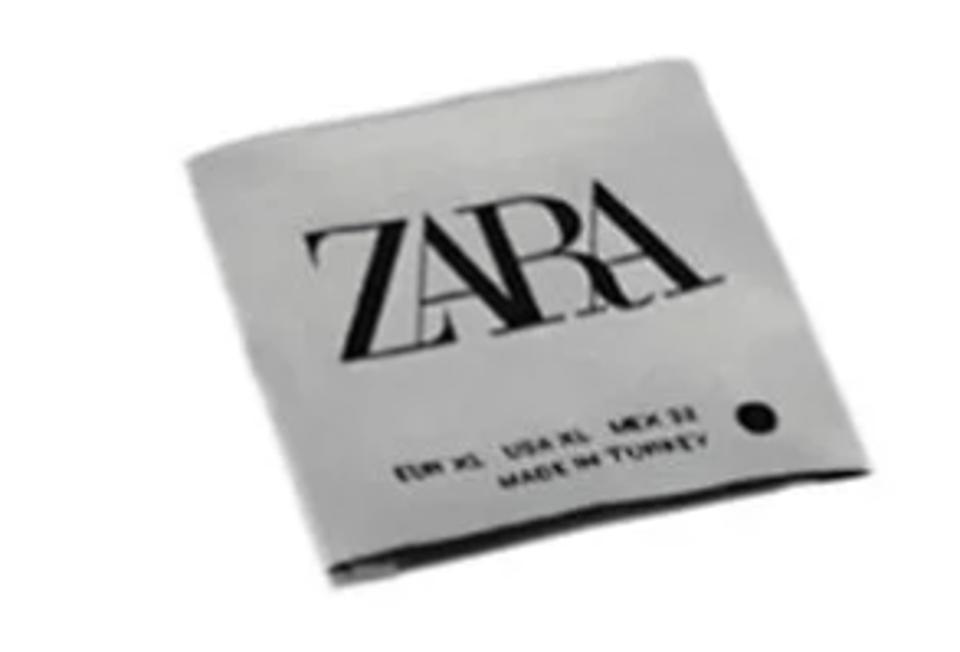

Woven tag are named as weft satin, satin and taffeta according to their production methods and quality types. For woven production actually it is in roll as picture show, but need put RFID label on each woven tag before cut into pcs .
Label applicator function
● Past the RFID inlay sticker on each pcs woven tag;
● If the RFID inlay can not reading EPC&TID, this pcs woven tag not labeling;
● If the woven tag with yellow marker not labeling;
● After labeling, collection in roll again ;
|
Model |
DPM-ALS204-S |
|
Driving Mode |
German novexx ALS204 |
|
Yield（pcs/min） |
80-150 (depends on tag and label size) |
|
Operating direction |
Left or Right |
|
Conveyor Speed（m/min） |
≤30 |
|
Labeling Accuracy |
±1.0 mm |
|
Inner diameter of label roll |
76 mm |
|
Outer diameter of label roll |
350 mm(max) |
|
Suitable label size |
Width 10-110 mm length 10-200 mm |
|
Suitable labeling products size |
Can customized depends on client product |
|
Voltage (can customized) |
110V/220V/380V |
|
Power（w） |
650W |
|
Weight（kg） |
280 |
|
Machine size |
1700（L） 1200 (W) 1400 (H) mm |
|
No |
Name |
Brand |
|
1 |
PLC |
SIEMENS |
|
2 |
Touch screen |
SIEMENS |
|
3 |
Labeling engine |
NOVEXX |
|
4 |
Motor |
JSCC |
|
5 |
Check label sensor |
German LEUZE |
|
6 |
Check tag sensor |
Japan KEYENCE |
|
7 |
24Vpower |
Taiwan DELTA |
|
8 |
Relay |
France Schneide |
|
9 |
PLC |
SIEMENS |
|
10 |
Color sensor |
German LEUZE |
