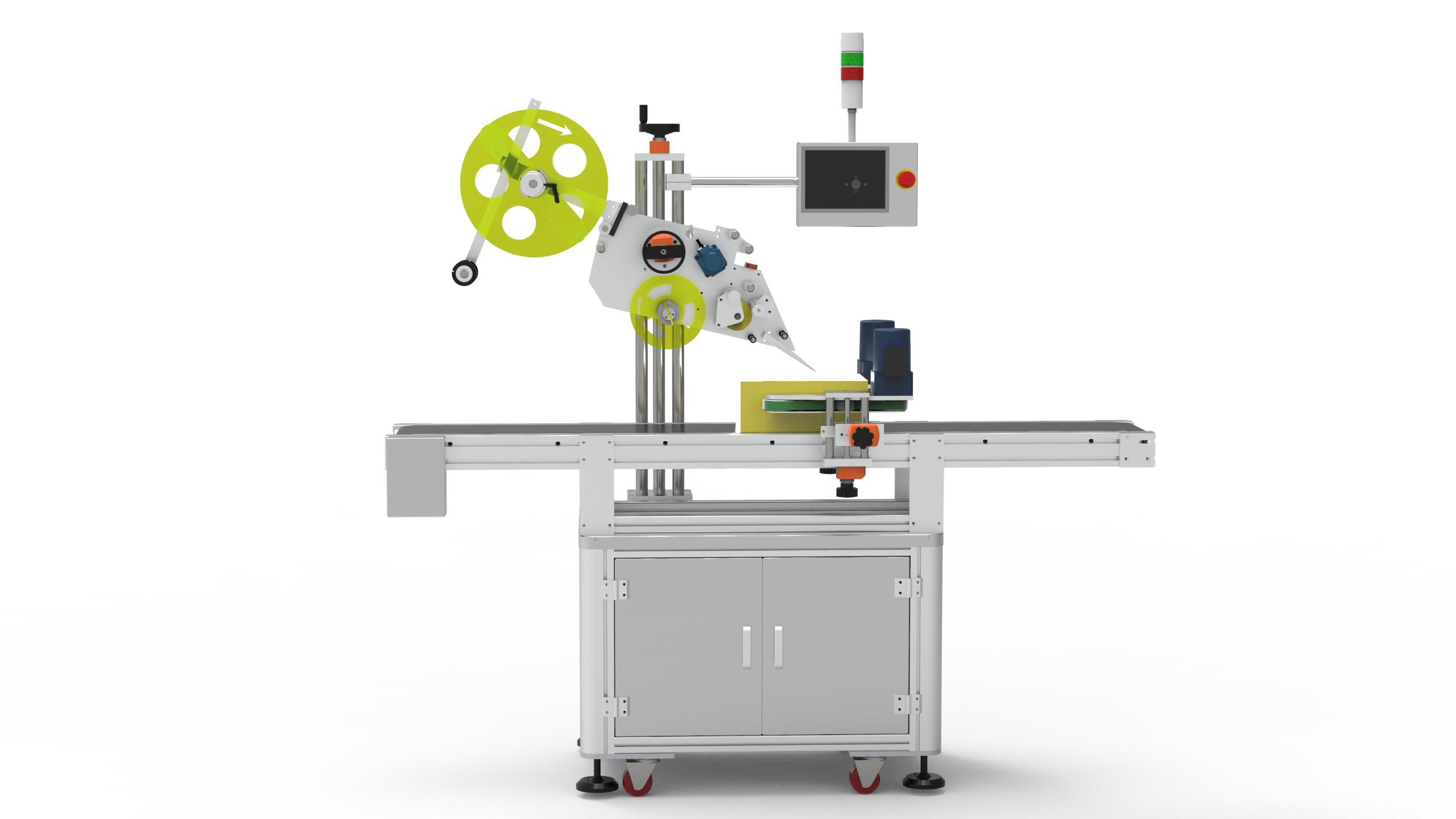

Bottle Tax Stamp L Shape Labeler
.webp)
.webp)
.webp)
L Shape & U Shape Tax Stamp Labeling Solution
For seal and tamper-evident labeling on bottles, cartons, boxes and pharmaceutical packs.
Tamper-Proof Sealing: Applies a strict 90-degree corner seal over opening flaps. Visual Integrity: Provides immediate visible evidence of package safety. Compliance Ready: Supports anti-counterfeiting and anti-tampering packaging requirements.
Multi-Panel Real Estate: Wraps one label across two faces in L-shape or three faces in U-shape. Premium Shelf Look: Replaces multiple flat stickers with one continuous, sleeve-like label.
Reduced Consumables: Eliminates separate top, side or bottom labels. Single-Head Footprint: Delivers multi-sided labeling with one labeling station. Minimal Maintenance: Fewer heads support simpler operation and lower spare-part use.
Anti-Winging Mechanics: Synchronized pneumatic flaps and active wipe-down rollers reduce lifting and creasing at sharp edges. Servo-Driven Accuracy: PLC and servo controls maintain ±0.5mm to ±1.0mm alignment.
High Output: Achieves stable continuous speeds of 40 to 180+ units per minute without slowing existing conveyor lines.
- Tax label on liquor bottle labeling
- Security seal labeling for medicine boxes and cigarette cases
- Tax stamp shape label application for food boxes
- Box and bottle L shape labeling
- Beer bottle cap L shape labeling
| Model | DPM-S |
| Label material | Self-adhesive sticker, opaque or transparent label |
| Driving Mode | Servo motor |
| Yield（pcs/min） | 10-200+ pcs/min |
| Suitable label size | Width 10-110 mm length 10-200 mm |
| Suitable labeling products size | Can customized depends on client product |
| Use air | 5kg/cm² |
| Voltage | 110V/220V/380V |
| Machine size | 1800（L）800 (W) 1300 (H) mm |
| No | Name | Brand |
|---|---|---|
| 1 | HMI (Touch screen) | SIEMENS |
| 2 | PLC | SIEMENS |
| 3 | Labeling engine control system | Panisonic |
| 4 | Sensor (check product) | Japan KEYENCE |
| 5 | Sensor (check label) | German LEUZE |
| 6 | Low voltage circuit breaker, terminal, relay | France Schneider |
| 7 | Frequency converter | DELTA |
| 8 | Conveyor motor | German JSCC |
| 9 | Clamp motor | German JSCC |
