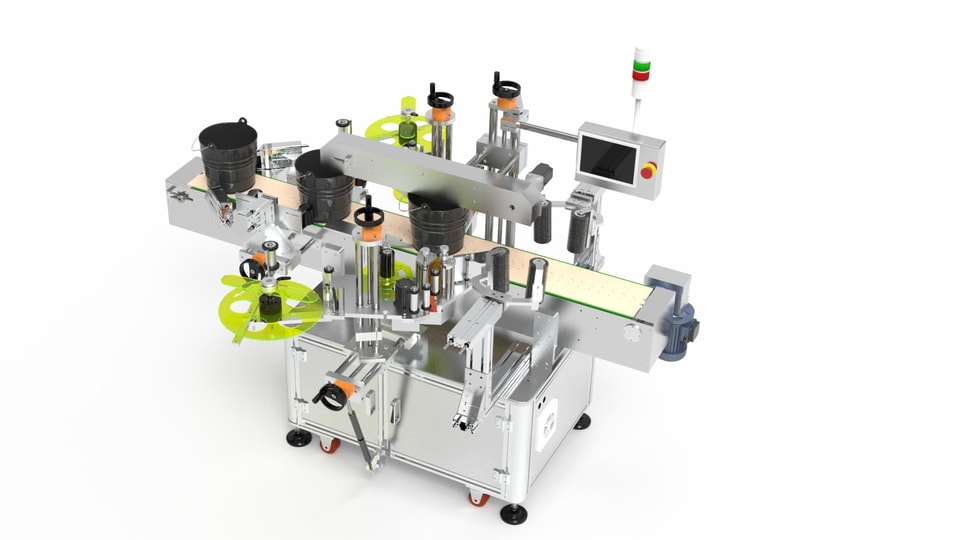

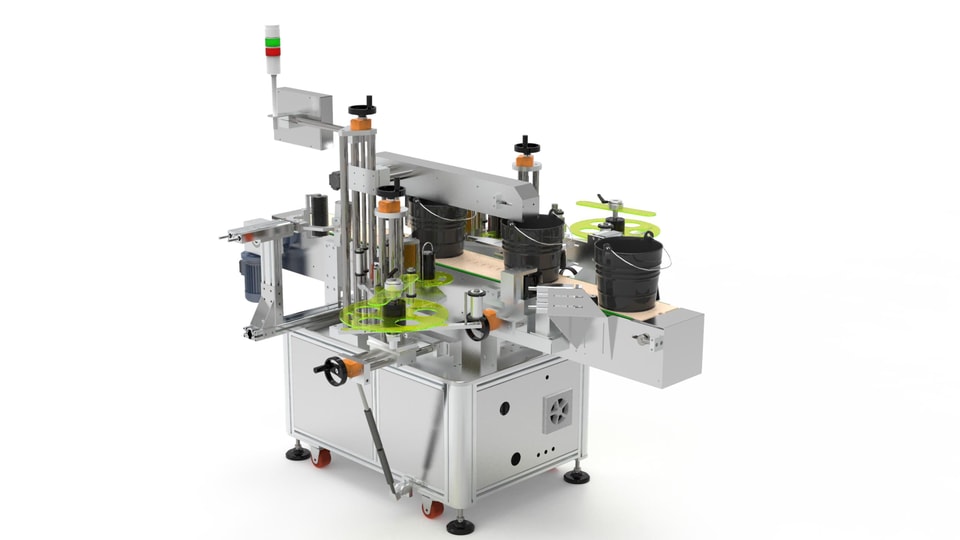

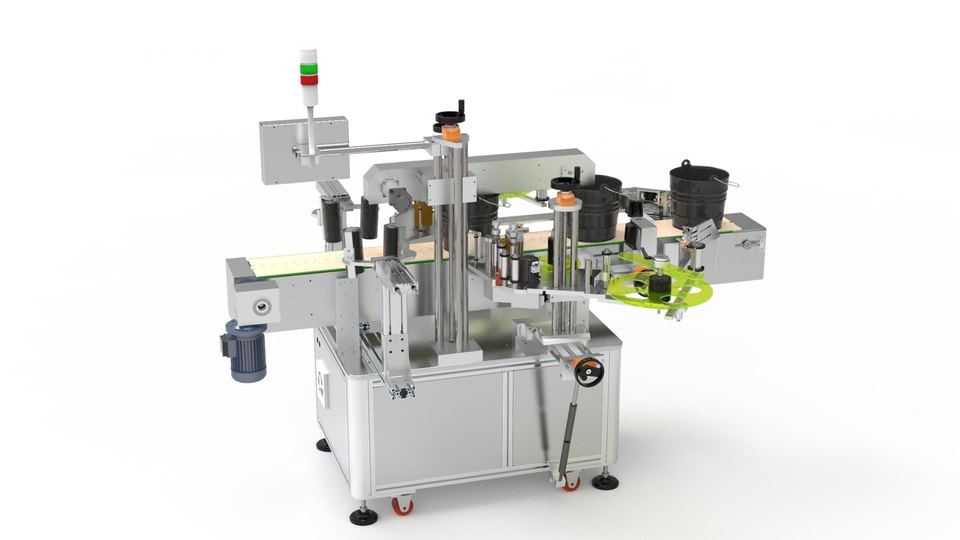

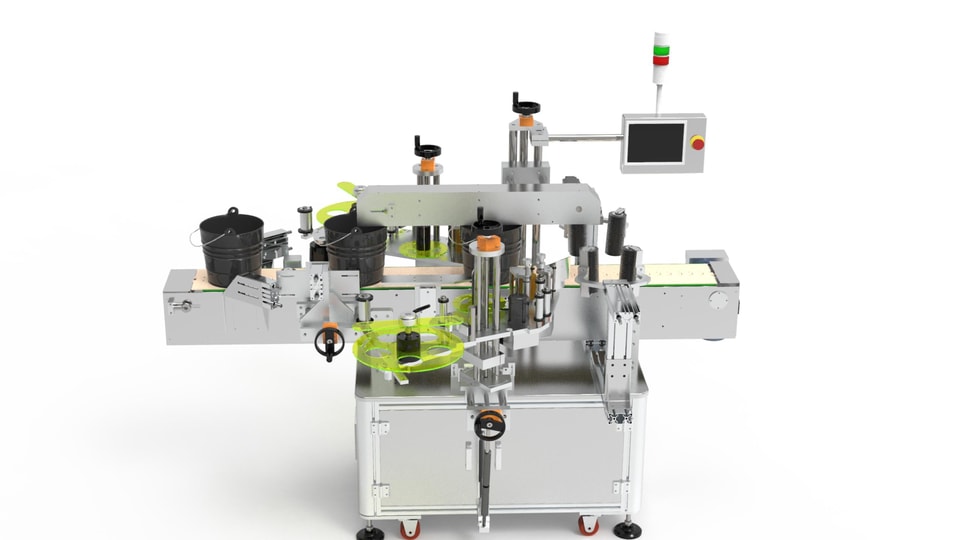

Aautomatic bucket pail labeling machine

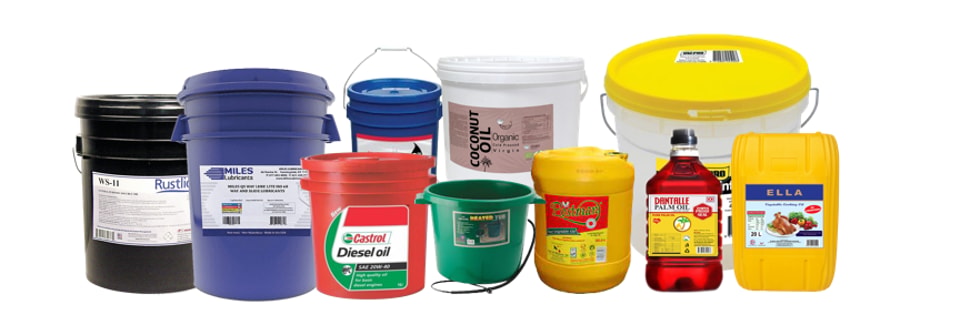

SKILT Bucket Labeling Machines (Pail Labelers) are industrial automated labeling devices specifically designed for large round, square, oval, and conical drums (1-gallon to 20-gallon sizes) in industries such as coatings, chemicals, lubricants, food, and building materials

Core Design and Process Challenges:

Due to the large size and weight of these containers, and their typically included handles and tapers, ordinary labeling machines are not directly applicable.SKILT Bucket Labeling Machines feature the following key mechanisms:

1) Handle Orientation & Guide: Automatically lifts, fixes, or rotates the bucket handle to a specific angle via mechanical guides or pneumatic levers, preventing the handle from interfering with the labeling process and ensuring the label is applied smoothly to the bucket.

2) Taper Compensation Mechanism: For tapered buckets with an incline, the labeling head can perform multi-axis fine-tuning in horizontal, vertical, and tilt angles to prevent wrinkles or air bubbles on the label.

3) Heavy-duty vacuum belt/three-roller system: Due to the large surface area of the drums, the equipment uses a three-roller pneumatic positioning rotary labeling system or a vacuum suction belt conveyor to ensure that large-size self-adhesive labels can be 100% tightly wrapped around the drum.

Main classifications of bucket labeling machines:

Based on different production line capacities and labeling positions, SKILT offers the following types of drum labeling machines for selection:

①　Full Wrap-Around Labeler (Full Automatic Rotary/Single-Side Full Circumference Labeling)

Suitable for: Labeling the entire circumference or large area of round drums and cans.

Features: Utilizes a three-roller mechanism or multi-point positioning to roll the label flatly onto the drum body 360 degrees.

②　Dual-Side/Front & Back Labeler (Full Automatic)

Suitable for: Labeling the front and back of square, oval, or round drums simultaneously.

Features: Both labeling heads operate synchronously, ensuring accurate label dispensing, suitable for high-efficiency export production lines.

③　Fully automatic top & bottom labeler

Suitable for: sealing lids, applying anti-counterfeiting labels, and labeling bottom barcodes.

Features: Often integrated as an add-on module behind the labeling machine on the barrel body, enabling multi-directional, one-time labeling.

Equipment options

1. TTO module,printer device

2. camera system(s) and rejection device

3. Buffer table
