Egg Tray Labeling Machine
.webp)
.webp)
Egg Box labeling machine l Egg tray label applicator
The egg carton labeling machine is a stand-alone intermittent motion labeling system designed for
mid-high speed of self-adhesive sticker labels affixed onto plastic/paper egg cartons.
Special for recycled Paper Pulp Egg Carton / Box / Tray
12 count tri-fold, 12 count bi-fold
18 count bi-fold, and 24 count bi-fold
Machine Features

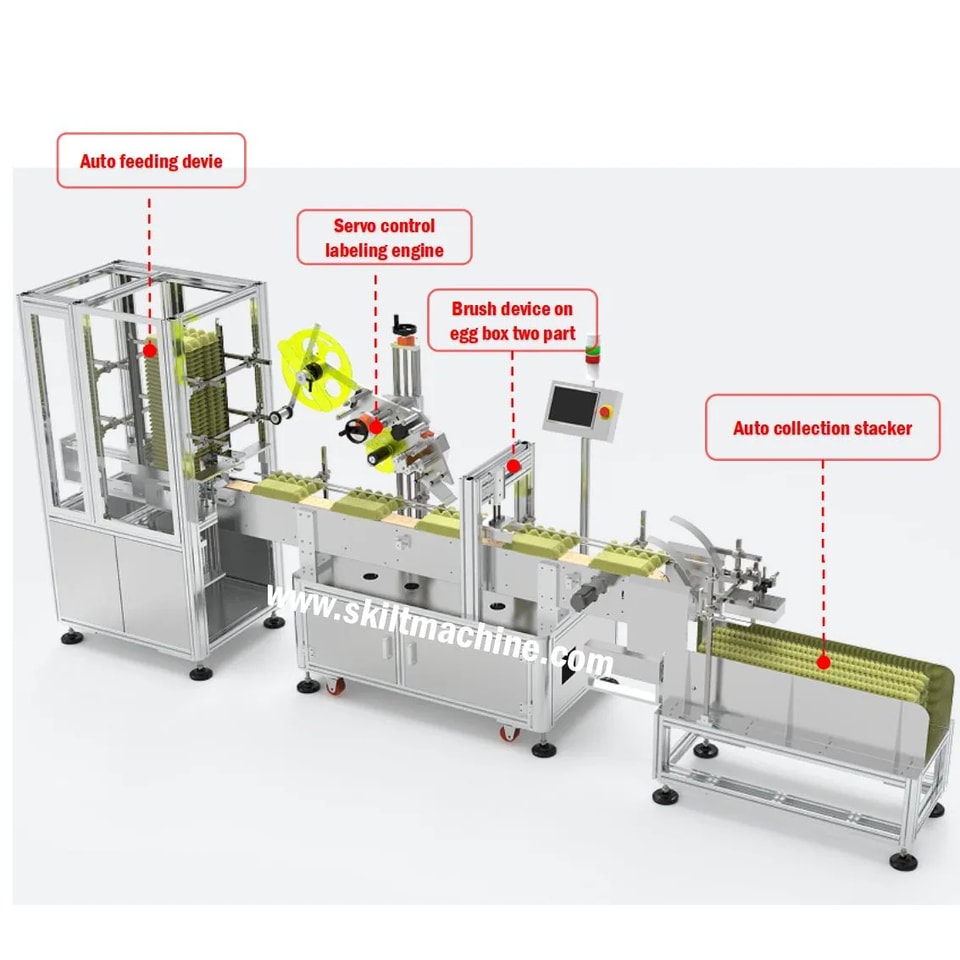

- Stacked Egg Trays Feeding Automatically
- Egg Trays Automatic Transportation System
- Products Position-Setting Automatically
- Labeled Products Automatic Stack Collecting System
| Model | DPM-ELM-A |
| Driving way | Servo system & German Novexx |
| Label material | Self-adhesive sticker |
| Yield（pcs/min） | 20-60pcs/min |
| Suitable label size | Width 10-150 mm length 10-300 mm |
| Suitable egg box size | Can customized |
| Voltage | 110V/220V/380V |
| Machine size | 2600（L） 800 (W) 1300 (H) mm |
| No | Name | Brand |
| 1 | PLC control system | SIEMENS |
| 2 | Touch-screen | SIEMENS |
| 3 | Labeling engine servo motor | Panisonic |
| 4 | Labeling engine servo drive | Panisonic |
| 5 | Frequency converter | Delta |
| 6 | Check egg box sensor | Japan KEYENCE |
| 7 | Check label sensor | German Leuze |
| 8 | Main transport motor | Switzerland ABB |
German NOVEXX labeling engine
① Machine with two years warranty；
② Supply operation training for client workers ；
③ If with quality problem, provide technical support and supply wearing parts timely ;
④ Range experienced engineer come to client company for installation；
Shanghai SKILT Machinery Equipment Co.Ltd founded in 1998, focus on research and manufacture intelligent labeling equipment.
