INTRODUCTION

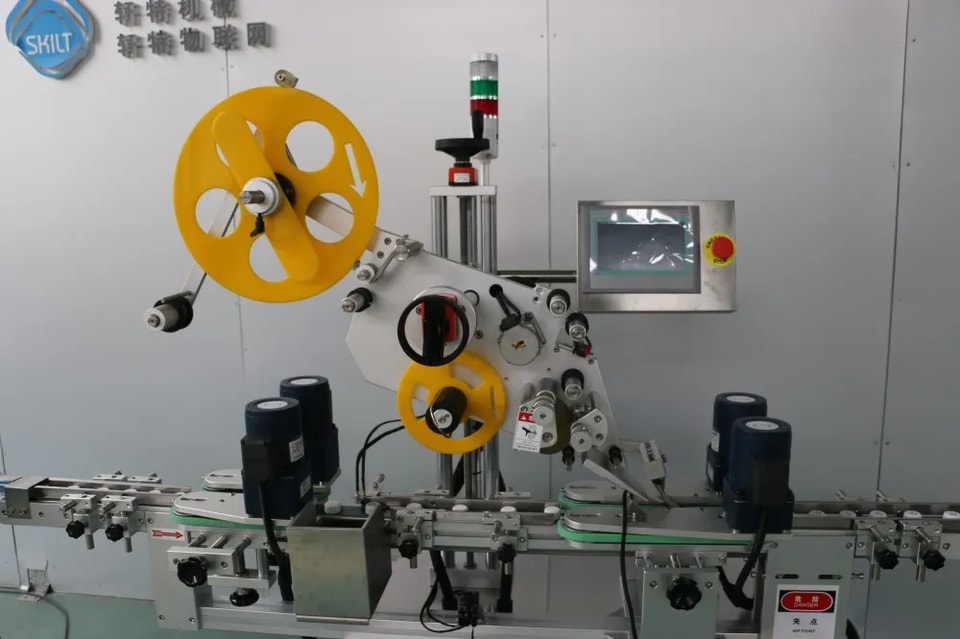

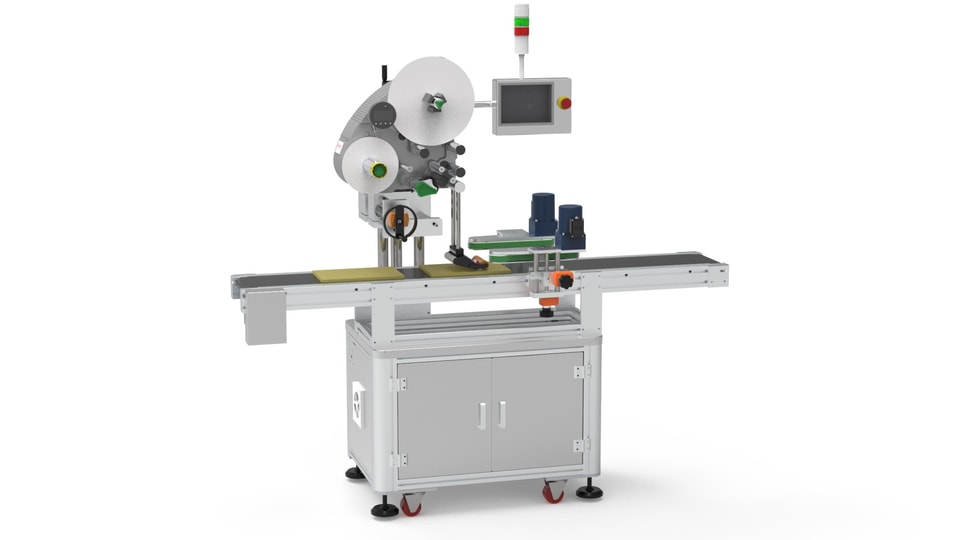

Labeling machine top labeler DPM solution :
- The DPM series for top labeling is compact, versatile and reliable, It has been designed based on SKILT modular kit,meaning quickly ready for use.
- No matter the product surfaces are smooth flat uneven or recessed, the DPM ensures a high throughput in all cases.
- Machine can be supplied with a variety of conveyor belt dimensions, which means they can be configured for a huge range of applications.
Machine Features Introduction :
- Labeling engine with SKILT servo control system and German Novexx ALS204 optional;
- Easy to integrate into any kind of production line ;
- Easy to integrate printers for variable labeling ;
- Can be combined with the reliable bottom labeler, labeling on top and bottom two surface ;
- Infeed and outfeed turntable optional ;
CONFIGURATION
| No | Name | Brand |
|---|---|---|
| 1 | PLC control system | SIEMENS |
| 2 | Touch-screen | SIEMENS |
| 3 | Labeling engine servo motor/driver | Panisionc & German NOVEXX |
| 4 | Check label sensor | German Leuze |
| 5 | Frequency converter | SIEMENS |
| 6 | Check cap sensor | Japan KEYENCE |
| 7 | Main transport motor | JSCC |
PARAMETER
| Model | DPM-A & DPM-ALS204 |
| Driving Model | Servo control system & German NOVEXX |
| Label material | Self-adhesive sticker, opaque or transparent label |
| Yield（pcs/min） | 20-300pcs/min |
| Suitable label size | L:10-300mm，H:10-300mm |
| Suitable bottle size | L: 40-380mm , H:40-350mm |
| Voltage | 110V/220V/380V |
| Machine size | 1800（L）× 800(W) × 1500 (H) mm |
OPTIONAL
1. Printer device , printing date and batch number on labels.
2. German NOVEXX Labeling engine
