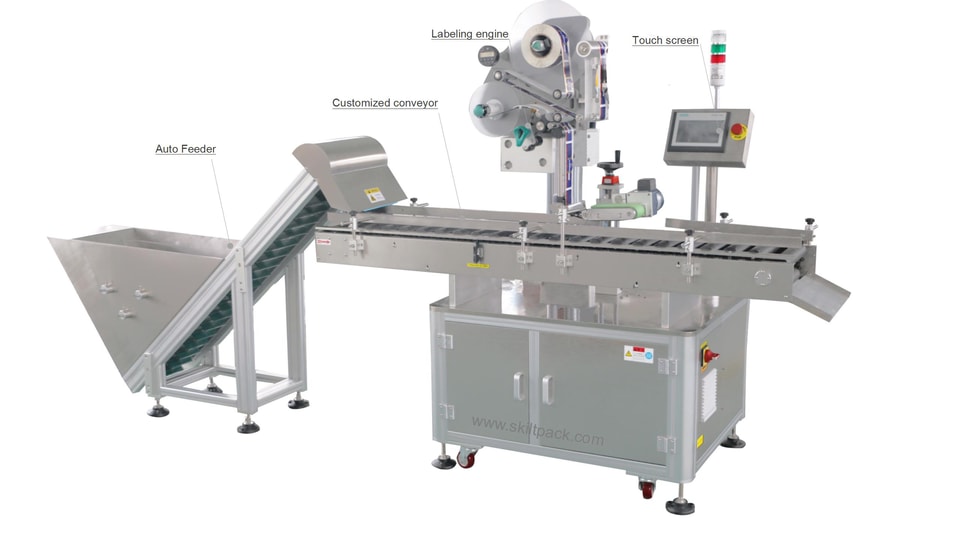

Sausage Labeling Machine
INTRODUCTION
● Suit for round sausage labeling wrap around in horizontal way.

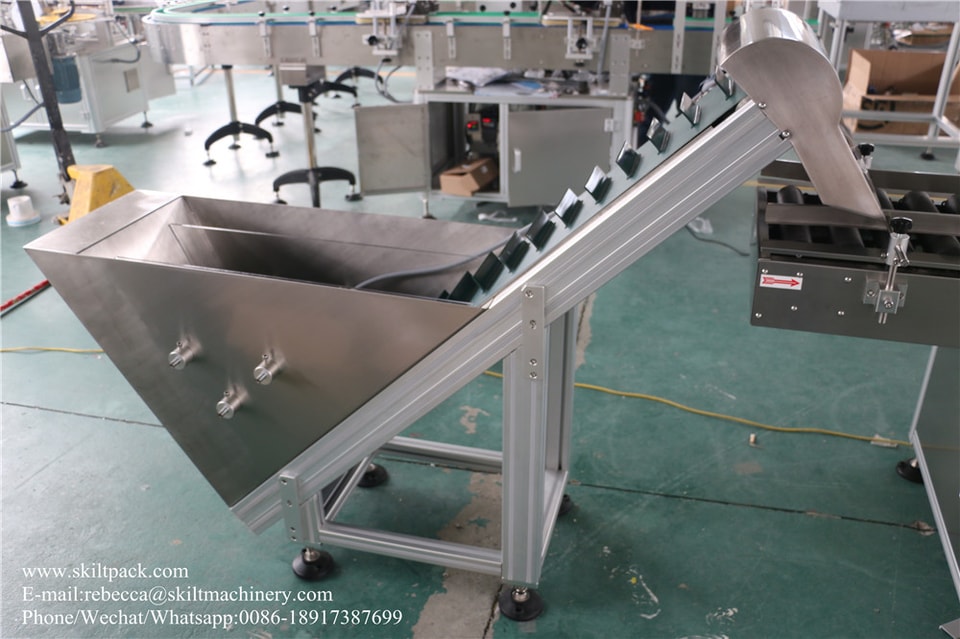

● With auto feeding stack device and collection device.
● With Printer device optional, printing date and batch number on label directly.

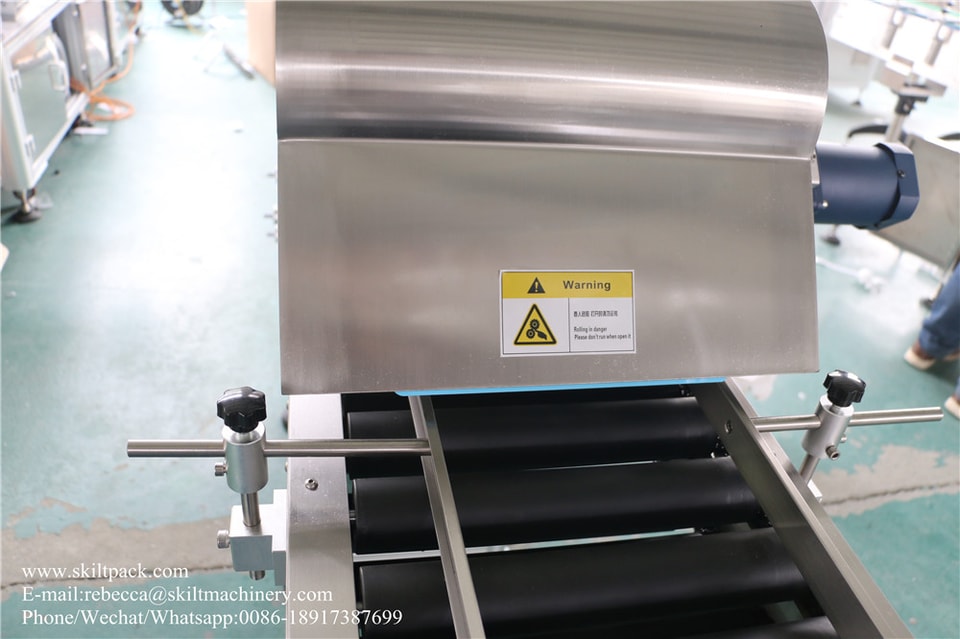

● Machine conveyor customized depends on the sausage size .
CONFIGURATION
| No | Name | Brand |
|---|---|---|
| 1 | PLC control system | SIEMENS |
| 2 | Touch-screen | SIEMENS |
| 3 | Labeling engine Servo motor | PANISONIC |
| 4 | Labeling engine Drive | PANISONIC |
| 5 | Frequency converter | DELTA |
| 6 | Check sausage sensor | Japan KEYENCE |
| 7 | Check label sensor | German Leuze |
| 8 | Main transport motor | JSCC |
PARAMETER
| Model | PWM-A & PWM-ALS204 |
| Driving Model | Servo system & German Novexx |
| Labeling way | Horizontal way |
| Label material | Self-adhesive sticker, opaque or transparent label |
| Yield（pcs/min） | 20-100pcs/min |
| Suitable label size | L:10-100mm，H:10-150mm |
| Suitable susage size | can customized |
| Voltage | 110V/220V/380V |
| Machine size | 2000（L） 700 (W) 1500 (H) mm |
OPTIONAL
OPTION 01
Printer device
Thermal transfer printer , printing date and batch number on labels.
OPTION 02
German Novexx labeling engine
