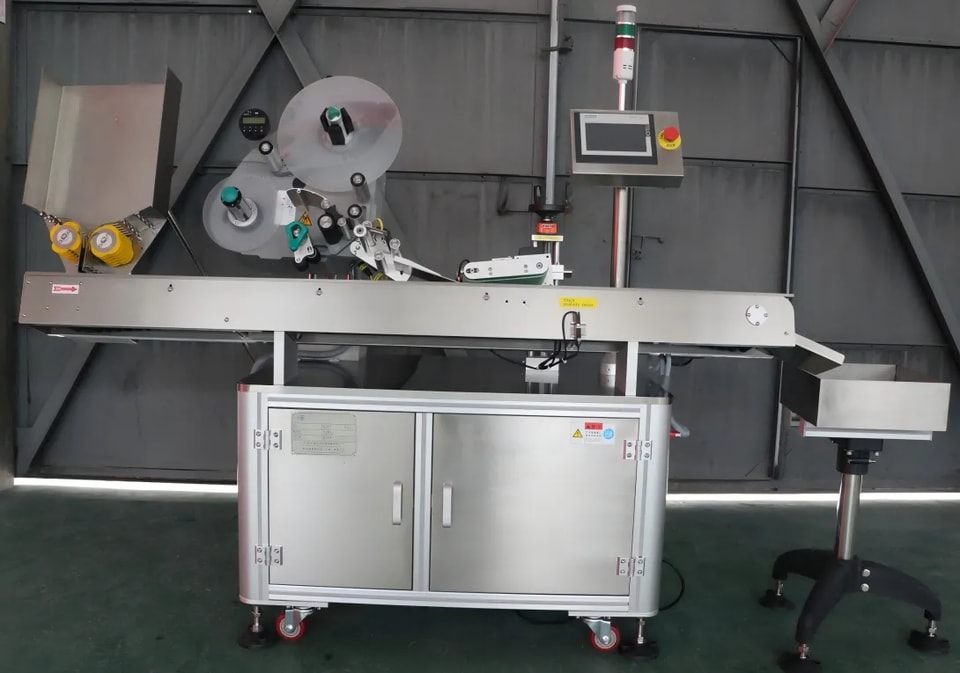

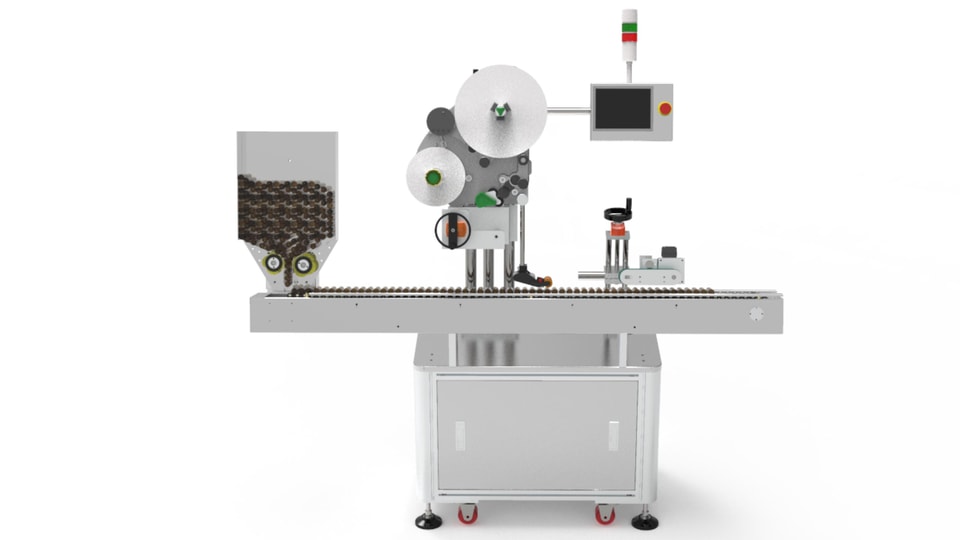

SKILT Unique Horizontal Way Labeling Solution
PWM Series horizontal wrap around automatic labeling machine suit for non-stable cylindrical products, such as ampoule,carpule ,tubes,pens,syringes,lipsticks,smoke flares,cartridges and so on.

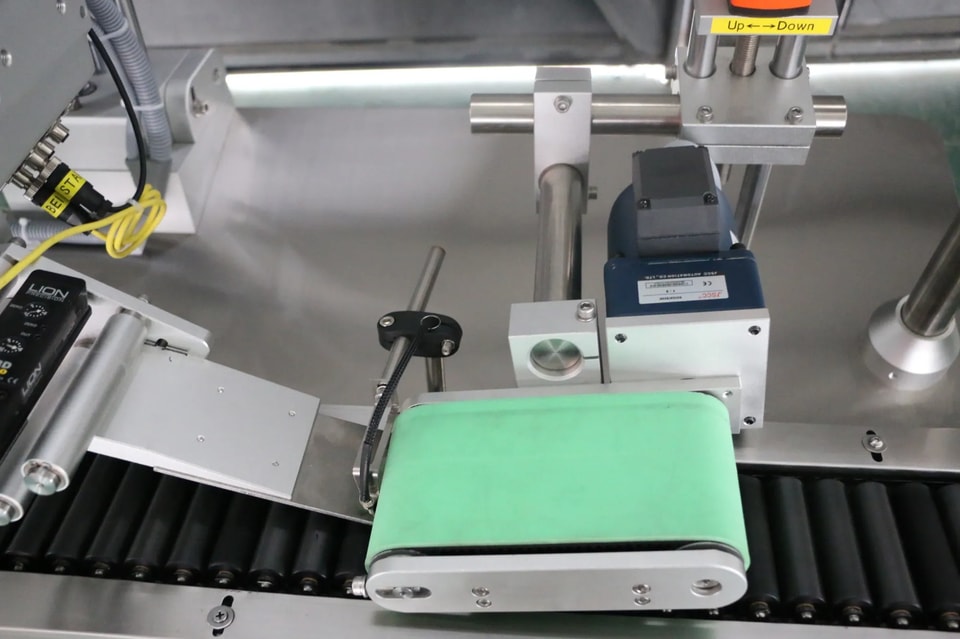

The products are labeled all around. The lying products reach the labeling station via a clocked roller conveyor belt, which fixes the label on the circumference. The system convinces with the highest positioning accuracy.
1.Has few moving parts, adjustments are easily made, changeovers easy.
2.Angled roller conveyor made depends on labeling objects shape and size, ensures labeling accuracy.

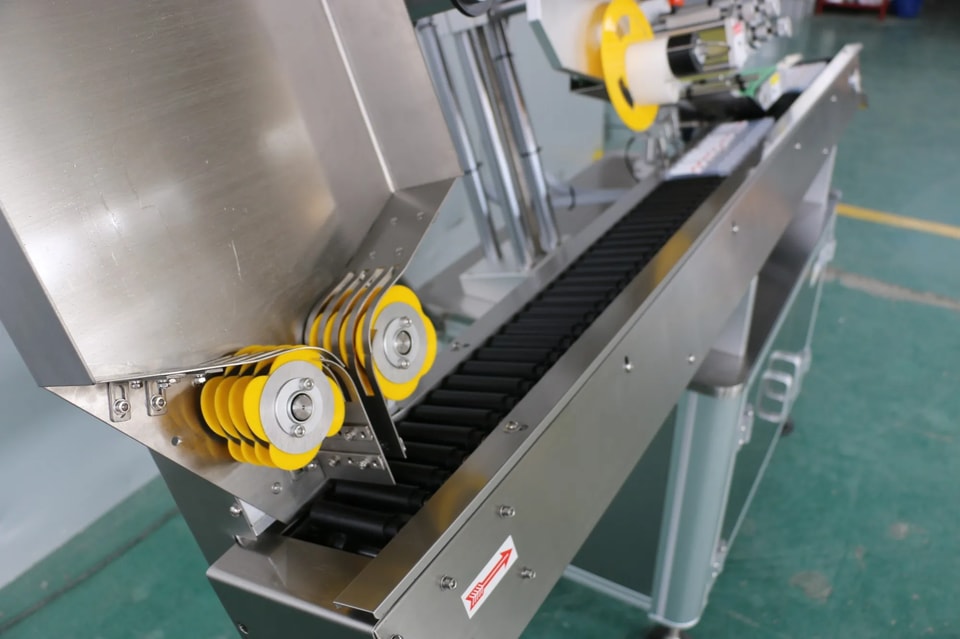

3.Auto feeder design and slanted conveyor made from special engineering plastic roller, potential damage to fragile containers are minimized.
1. The system can be expanded to include label printing systems such as thermal transfer printing systems, thermal inkjet devices (TIJ), continuous inkjet systems (CIJ) or hot stamping devices,TTO module.
2. Optional vision systems guarantee quality criteria such as the presence, correctness of print data, label placement on your products and ensure that complaints are settled right from the start.

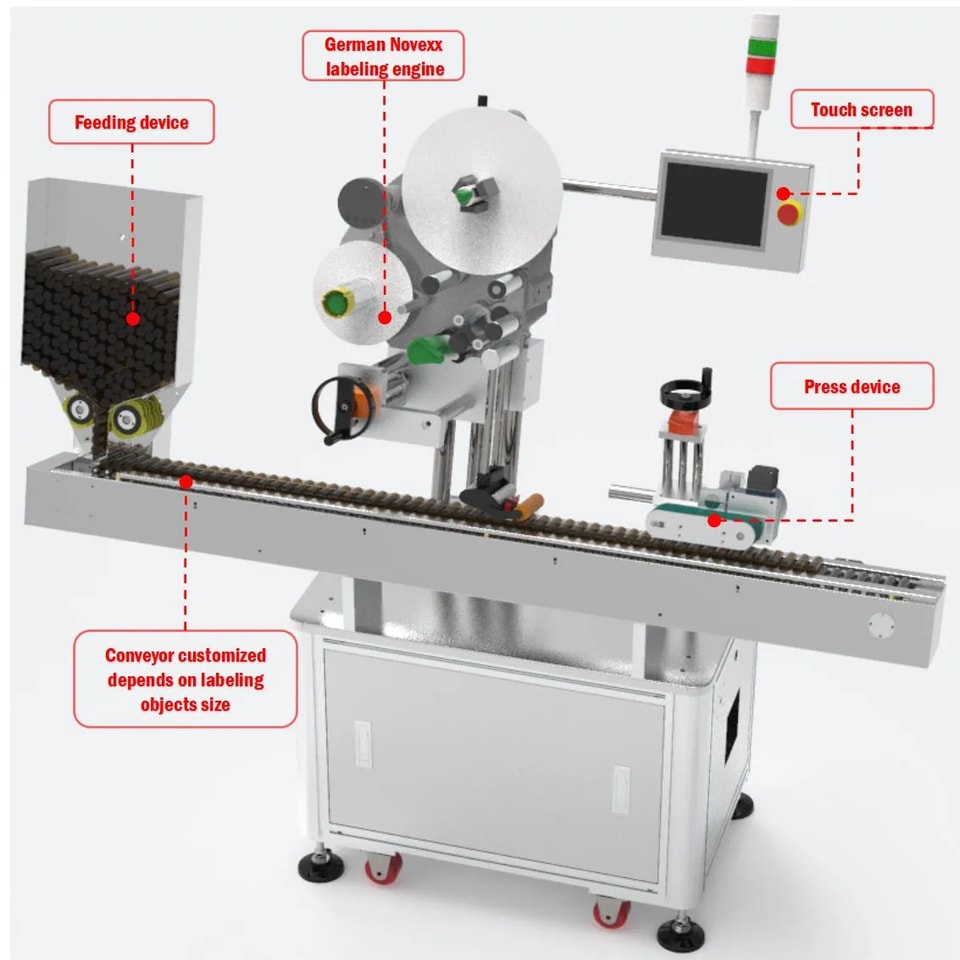

Machine Detail Function Show
|1||PLC control system||SIEMENS|
|6||Check lipstick lip blam sensor||Japan KEYENCE|
|7||Check label sensor||German Leuze|
|8||Main transport motor||JSCC|
|Model||PWM-A & PWM-ALS204|
|Driving Model||Servo system & German Novexx|
|Labeling way||Horizontal way|
|Label material||Self-adhesive sticker, opaque or transparent label|
|Suitable label size||L:10-100mm，H:10-150mm|
|Suitable Lipstick Lip Blam size||Diameter: 10-30mm|
|Machine size||1800（L）× 800(W)× 1500 (H) mm|
1. Printer device , printing date and batch number on labels.

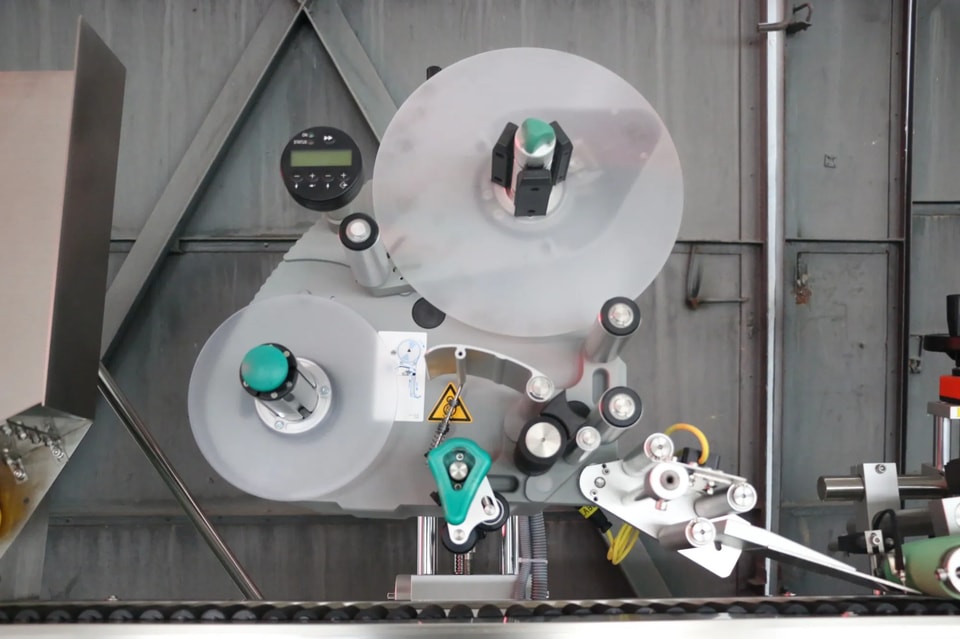

2. German NOVEXX Labeling engine
