Plastic Egg Box Tray Labeling Machine

INTRODUCTION

     Egg Box labeling machine l Egg tray label applicator

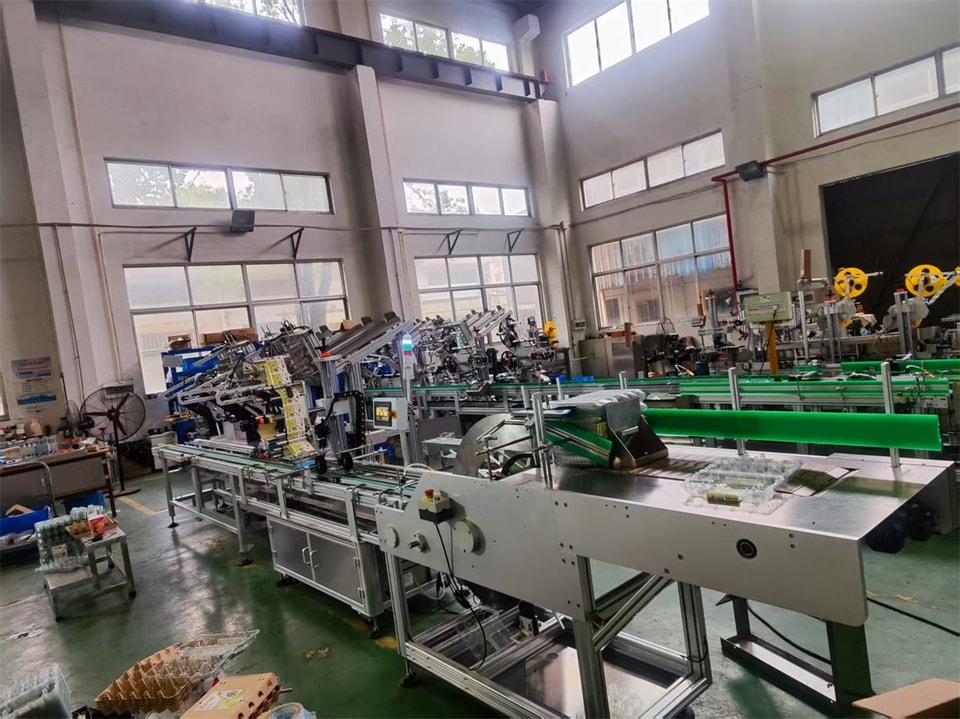

SKILT High speed egg box labeling machine is a stand-alone intermittent motion labeling system designed for

mid-high speed of self-adhesive sticker labels affixed onto plastic/paper egg box surface directly.

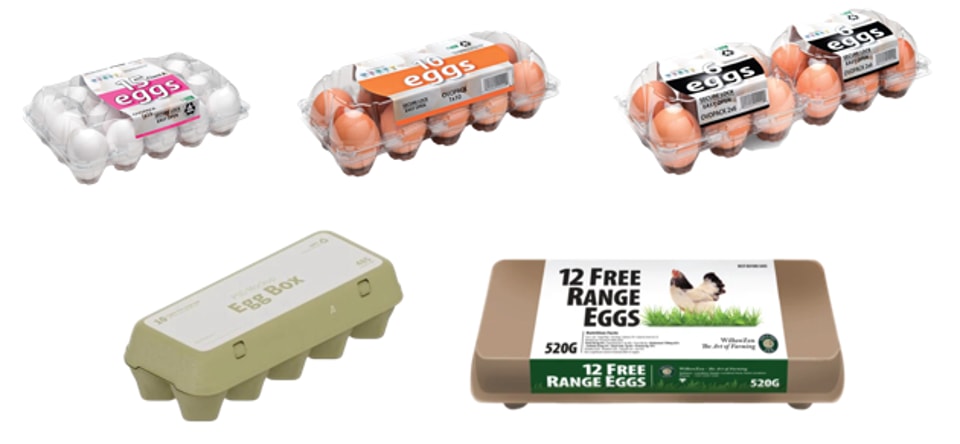

    Special for recycled Paper Pulp Egg Carton / Box / Tray

    12 count tri-fold, 12 count bi-fold
    18 count bi-fold, and 24 count bi-fold

Machine Features

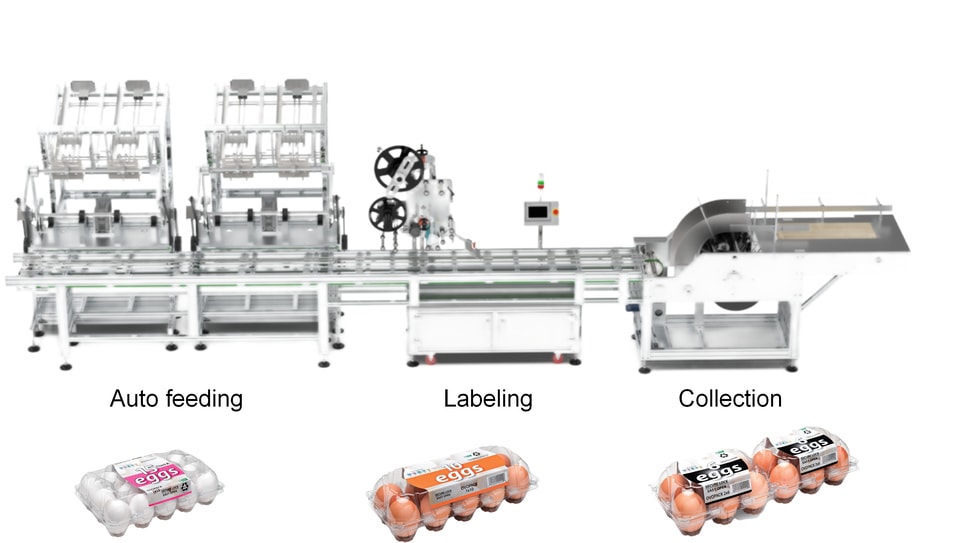

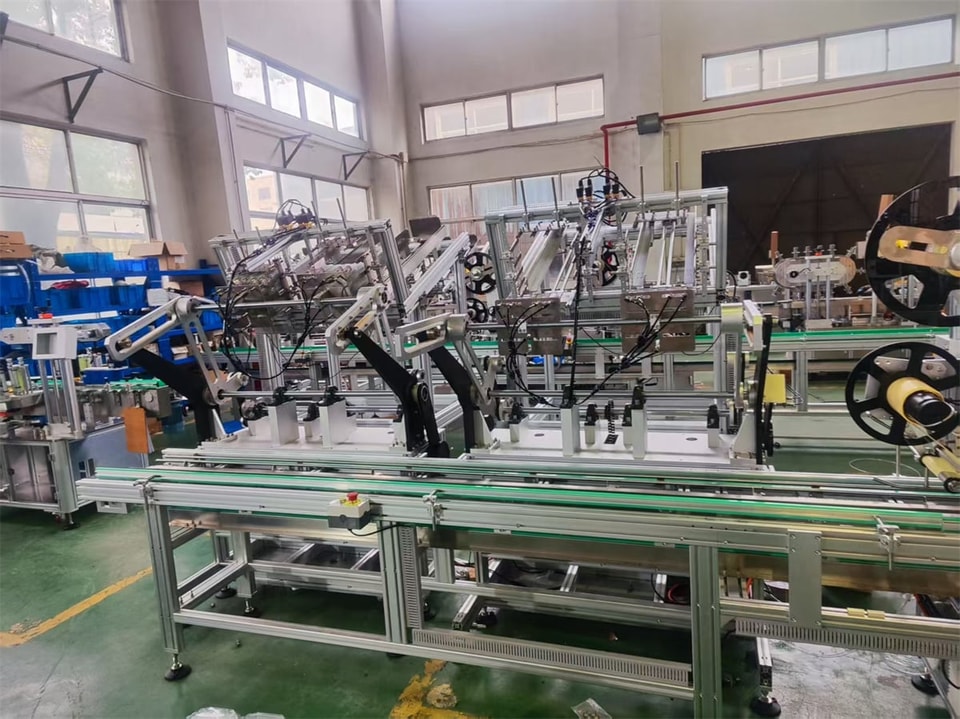

  Feeding: The operator loads a stack of nested clamshells/Egg tray box into the 4 feeding  hopper. The automatic feeder separates and dispenses them one by one onto the conveyor. With 2 / 4 /6 Channel feeding device optional depends on client labeling speed .

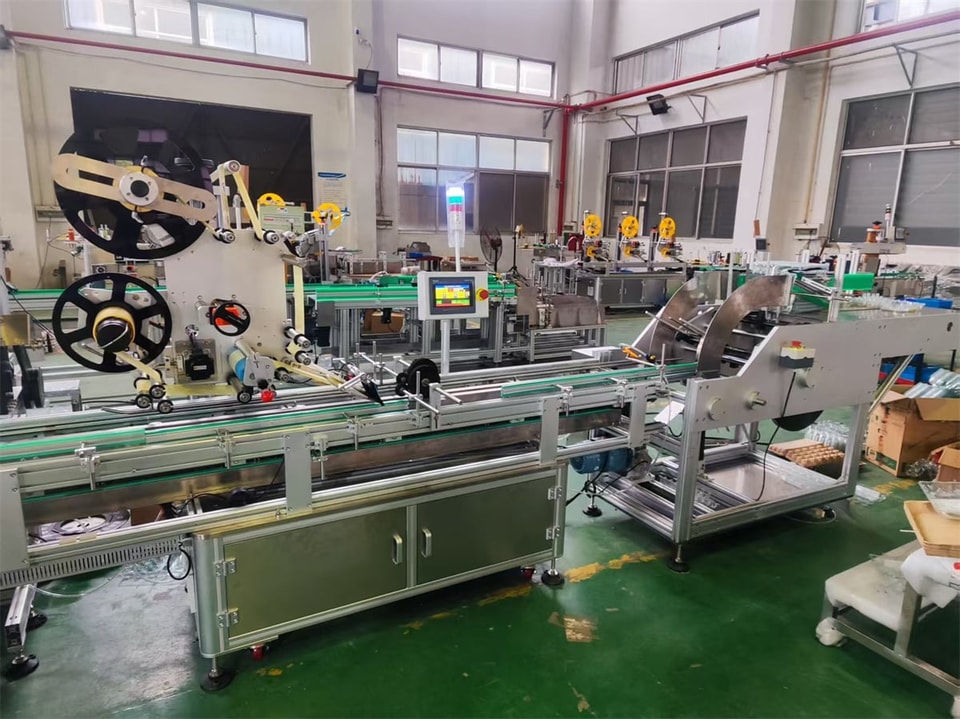

  Labeling: The servo-driven labeling head dispenses the label synchronously with the conveyor speed, sticking it onto the top, bottom, or wrapping around the side of the clamshell.

  Collection: The finished clamshell reaches the end of the line, where the collection device automatically counts and stacks them back together.

PARAMETER
ModelDPM-SP
Driving wayServo system & German Novexx
Label materialSelf-adhesive sticker
Yield（pcs/min）30-160pcs/min
Suitable label sizeWidth 10-150 mm  length 10-300 mm
Suitable egg box sizeCan customized
Voltage110V/220V/380V
Machine size4600（L） 1800 (W)  1800 (H) mm
CONFIGURATION
NoNameBrand
1PLC control systemSIEMENS
2Touch-screenSIEMENS
3Labeling engine servo motorPanisonic
4Labeling engine servo drivePanisonic
5Frequency converterDelta
6Check egg box sensorJapan KEYENCE
7Check label sensorGerman Leuze
8Main transport motorSwitzerland ABB
OPTIONAL

German NOVEXX labeling engine

SERVICE
① Machine with two years warranty；
② Supply operation training for client workers ；
③ If with quality problem, provide technical support and supply wearing parts timely ;
④ Range experienced engineer come to client company for installation；
