Clamshell Tray Labeling Machine

INTRODUCTION

Auto High Speed Clamshell labeling machine l Tray label applicator

SKILT High speed clamshell labeling machine is a stand-alone intermittent motion labeling system designed for

mid-high speed of self-adhesive sticker labels affixed onto plastic tray clamshell top or bottom surface directly.

Machine Features

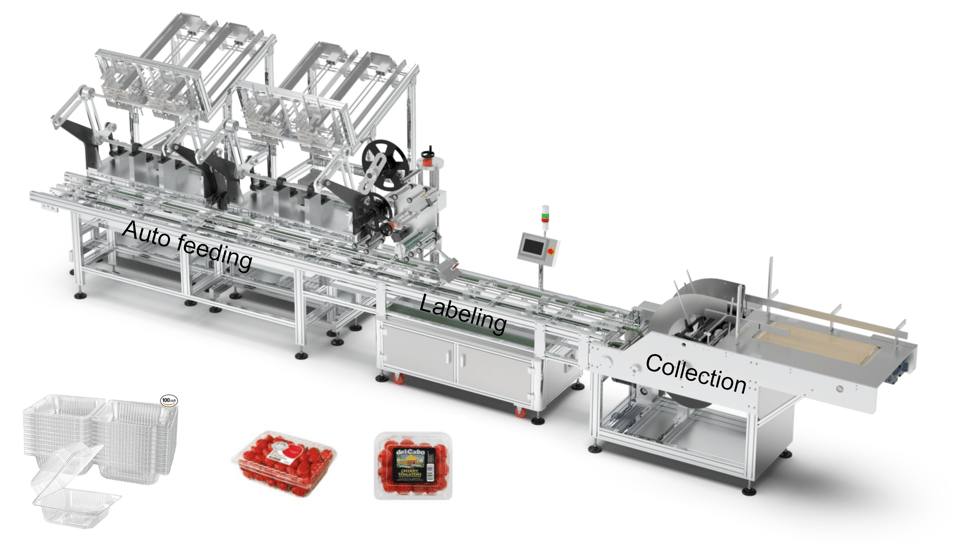

Automatic Feeding Device (De-nester / Dispenser): operator loads a stack of clamshells/Egg tray box into the 4 feeding hopper and places them individually onto the conveyor belt using vacuum suction or mechanical grippers. With 2 / 4 /6 Channel feeding device optional depends on client labeling speed .
Conveyor System: High-precision transport belt equipped with guiding rails to keep the clamshells perfectly aligned during high-speed movement.
Labeling Head (Applicer): Powered by high-speed servo motors to dispense and apply labels precisely onto the moving containers.
Pressing/Smoothing Mechanism: Sponge rollers or brush systems that press the label firmly onto the clamshell surfaces to eliminate air bubbles and wrinkles.
Automatic Collection Device (Stacker / Re-nester): Collects the labeled clamshells and automatically restacks them efficiently for bulk packing.

Key Features & Advantages

High Efficiency: Eliminates manual labor for feeding, labeling, and stacking, reaching speeds up to 60–150 containers per minute (depending on container size).
High Precision: Servo motor controls ensure labeling accuracy within ±1mm, even at maximum operational speeds.
Damage Prevention: Specially designed separation mechanisms handle thin plastic or paper pulp clamshells gently without cracking or deforming them.
Versatility: Adjustable guides allow the machine to handle various clamshell sizes and shapes
Smart Integration: Often equipped with "No object, no labeling" and "Label missing alert" sensors to minimize waste. It can also integrate thermal inkjet printers for real-time printing of expiration dates and barcodes.

Primary Industry Applications:

Fresh Produce: Labeling clear plastic clamshells for strawberries, blueberries, cherry tomatoes, and salad greens.
Bakery & Confectionery: Packaging for cakes, pastries, croissants, and cookies.
Poultry: Plastic or pulp egg cartons and trays.
Retail & Hardware: Clamshell blister packs for electronics, batteries, toys, and small tools. [1, 2, 3]

PARAMETER

CONFIGURATION
