INTRODUCTION

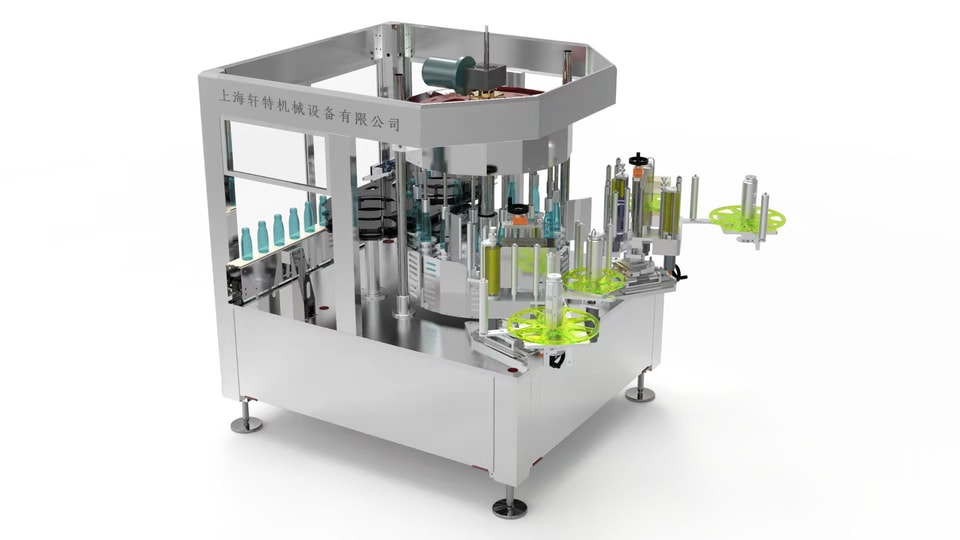

● High speed rotary way labeling machine, with 6 heads 8 heads or 12 heads can choose;

● Suit for round bottle labeling wrap around ;

● Suit for square bottle labeling on multi sides with one label;

● Suit for flat bottle labeling on front back two sides.

Function Introduction

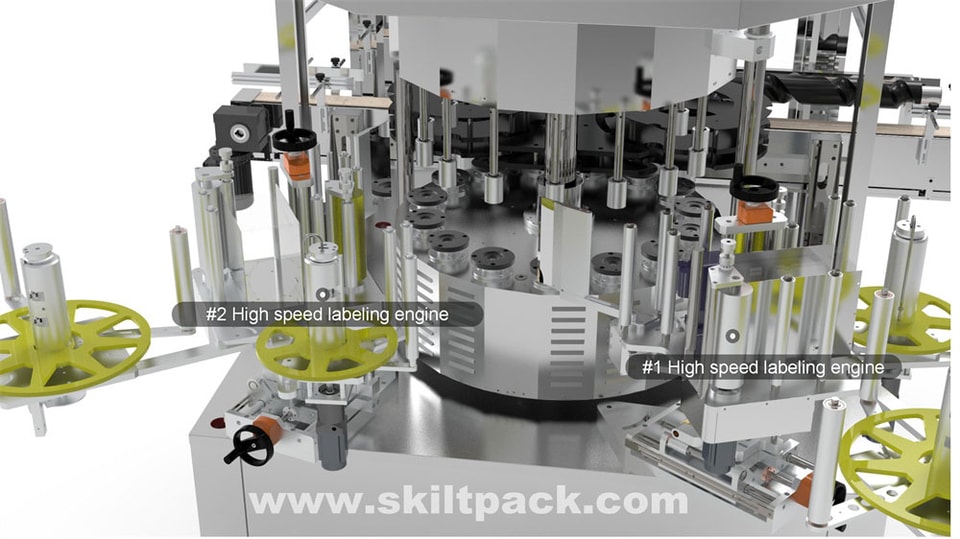

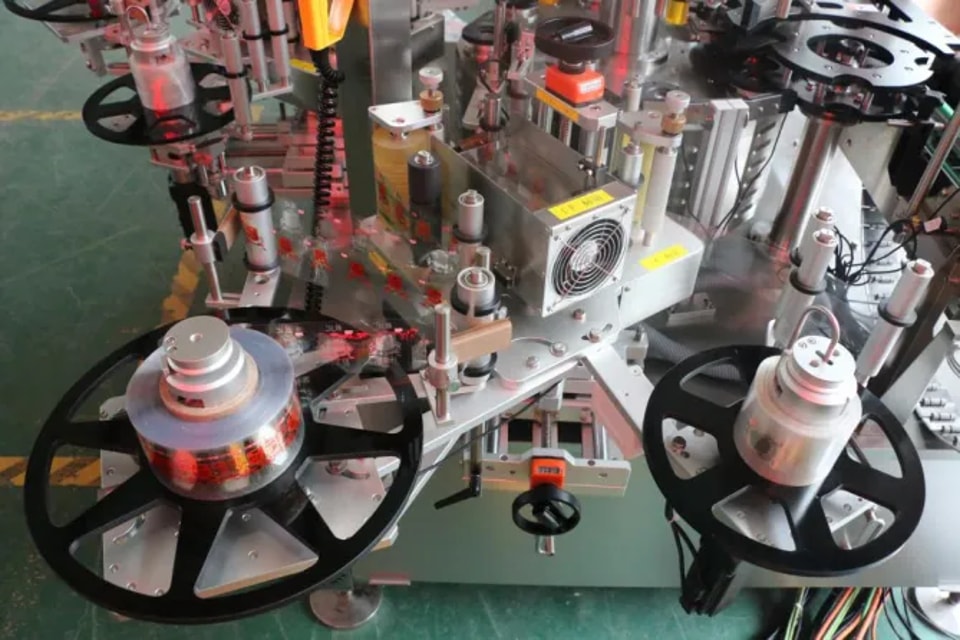

Labeling engine :

1. Main send label servo motor, use the motion control servo, high performance, high response;

2. Send label motor is the Independent servo motor operation, with the label storage warehouse, label can not broken in high speed ;

3. Collection label motor also the independent servo motor operation, with the angle sensor, smooth collection;

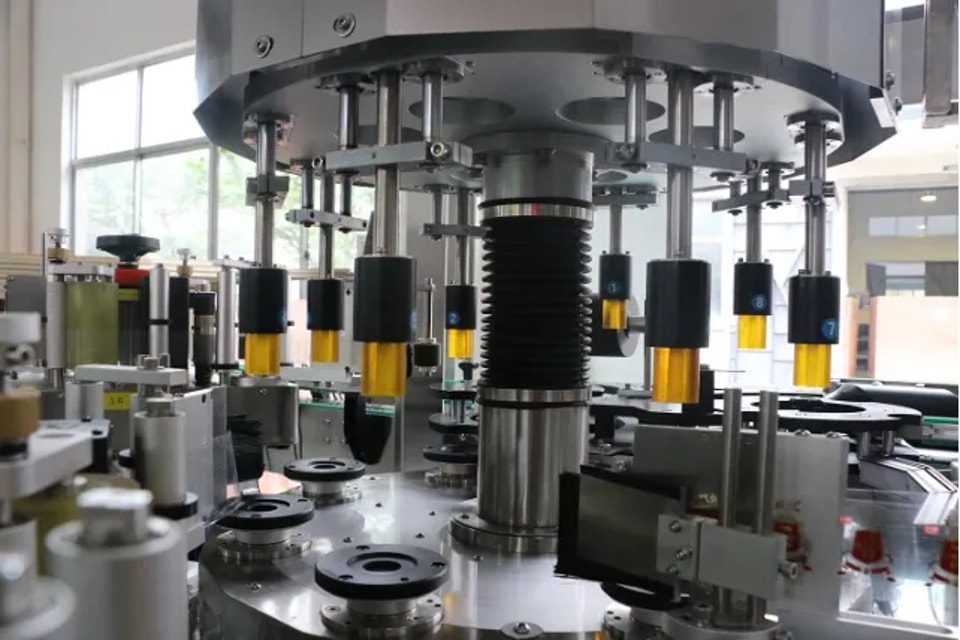

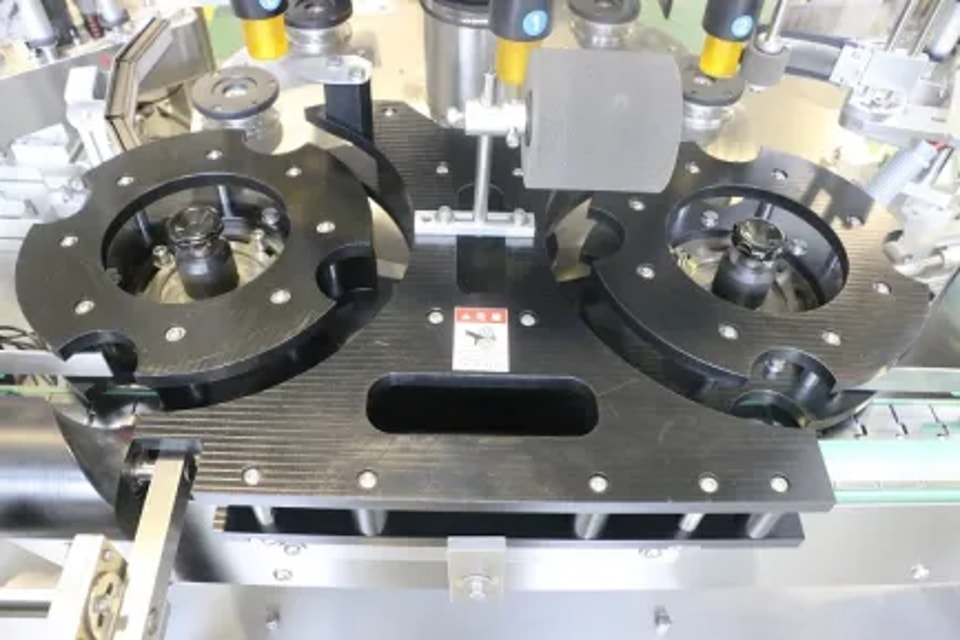

Bottle holder :

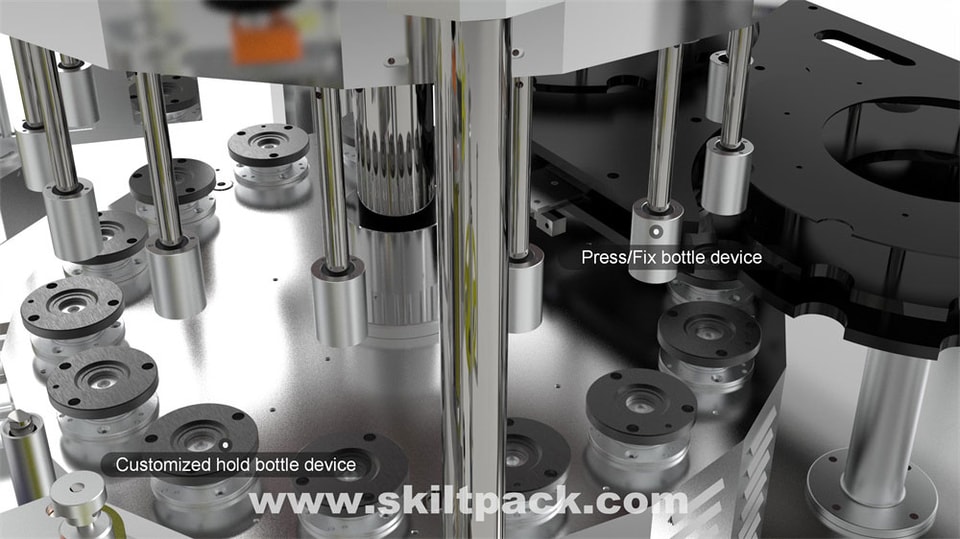

Depends on client bottle size and shape, design the most suitable press bottle heads and bottle holders, with perfect labeling effect;

CONFIGURATION

No	Name	Brand
1	PLC control system	DELTA
2	Touch-screen	DELTA
3	Servo motor	DELTA
4	Servo drive	DELTA
5	Servo encoder cable	DELTA
6	Servo power cable	DELTA
7	Extended module 1	DELTA
8	Extended module 2	DELTA

PARAMETER

Model	XTHZ600-8S
Lock and press bottle heads	8heads
Labeling control system	servo system
Suitable label size	H: 15-150mm，L:20- 300mm
Suitable bottle size	can customized depends on bottle size
Yield（pcs/min）	4000-10000 P/H( can adjustable )
Voltage	110V/220V/380V/50HZ
Machine size	2400×1700×2080mm
