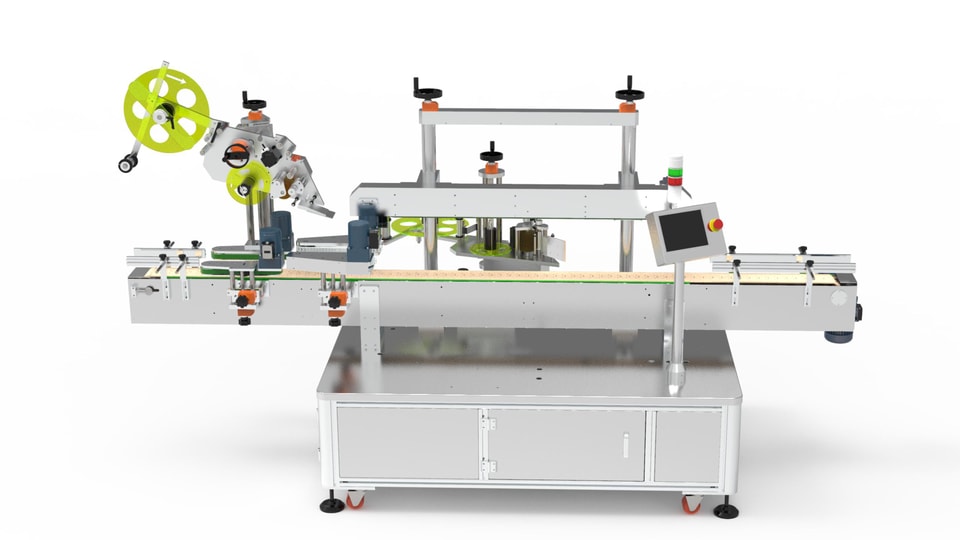

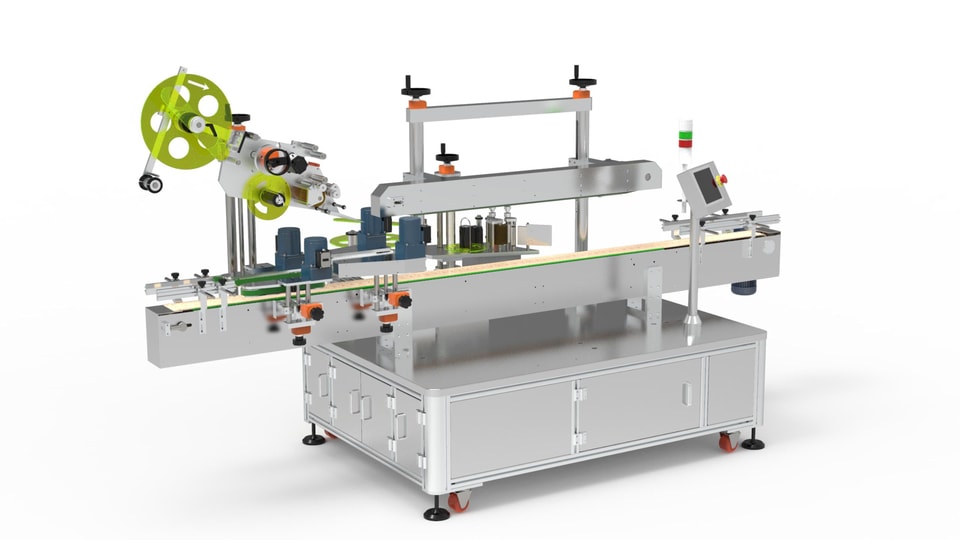

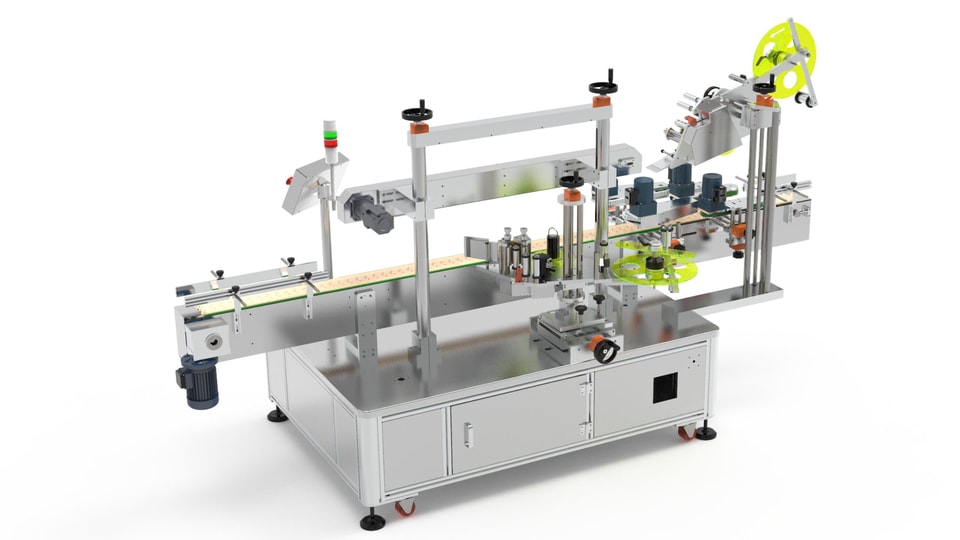

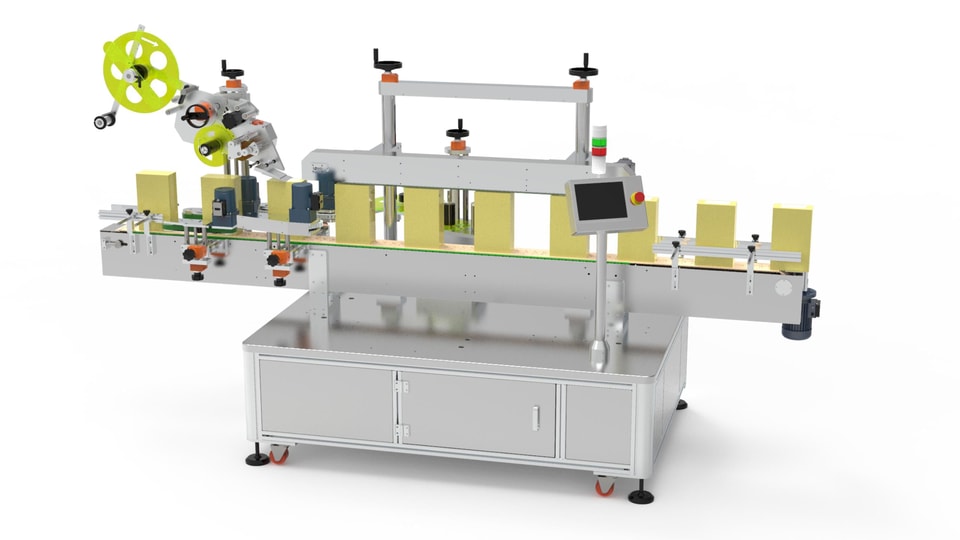

Square Bottle/Jar/Cans Top&Side Labeler

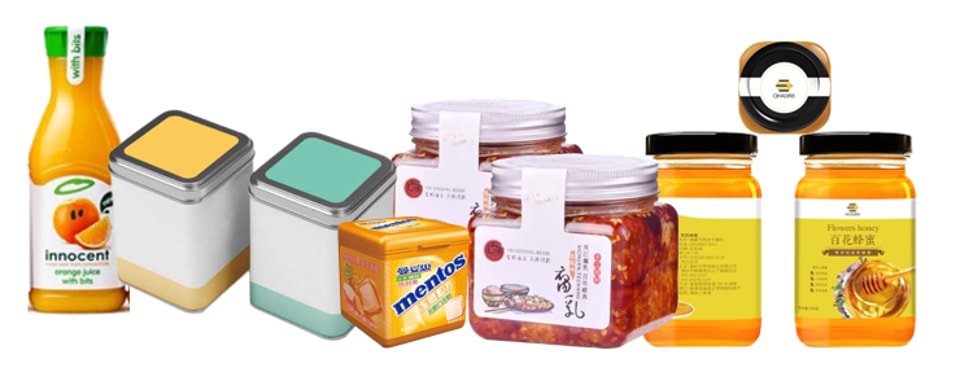

● Suit for square bottle jars cans labeling on top and side surface, with two stickers;
● With rolling label device, suit for round bottle labeling wrap around;
| No | Name | Brand |
|---|---|---|
| 1 | PLC control system | SIEMENS |
| 2 | Touch-screen | SIEMENS |
| 3 | Labeling engine Servo motor | PANISONIC & GERMAN NOVEXX |
| 4 | Check opaque label sensor | German Leuze |
| 5 | Check cup sensor | Japan KEYENCE |
| 6 | Main transport motor | Switzerland ABB |
| 7 | Press cup motor | German JSCC |
| 8 | Separate cup Motor | German JSCC |
| Model | DPM-SLM-A & DPM-SLM-ALS204 |
| Driving Model | Servo system & German Novexx |
| Label material | Self-adhesive sticker, opaque or transparent label |
| Yield（pcs/min） | 50-180pcs/min |
| Suitable label size | L:10-200mm，H:10-150mm |
| Suitable bottle size | W:(Diameter): 20-90mm , H:30-300mm |
| Voltage | 110V/220V/380V |
| Machine size | 2400（L）× 1500(W)× 1500 (H) mm |
Drawing
1.German NOVEXX labeling engine
2. Printer device printing date and batch number on labels.
① Machine with two years warranty；
② Supply operation training for client workers ；
③ If with quality problem, provide technical support and supply wearing parts timely .
④ Range experienced engineer come to client company for installation；
