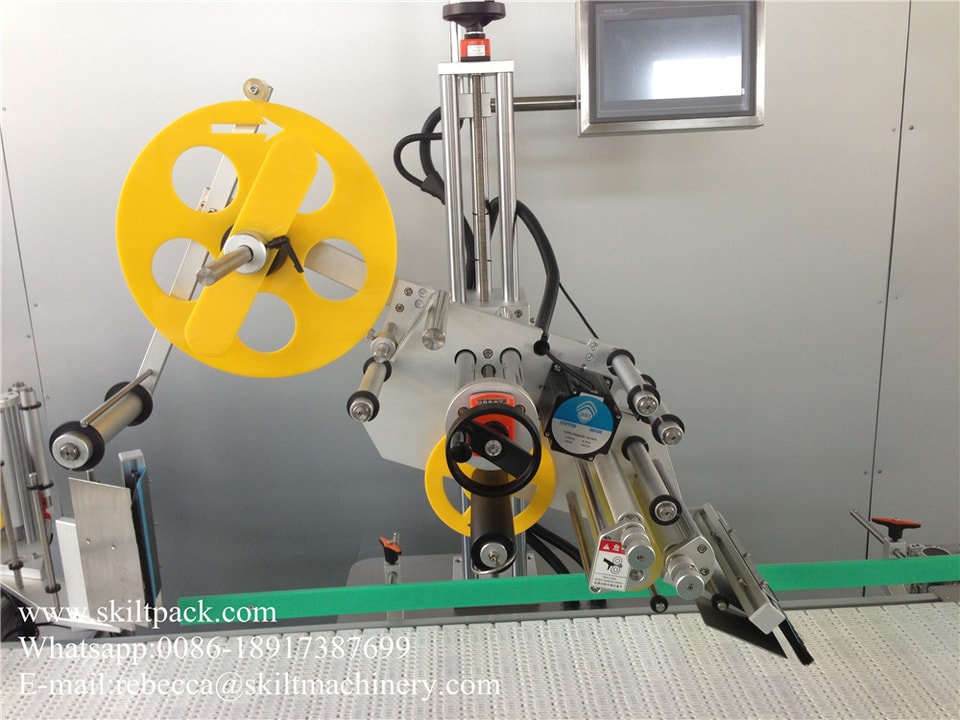

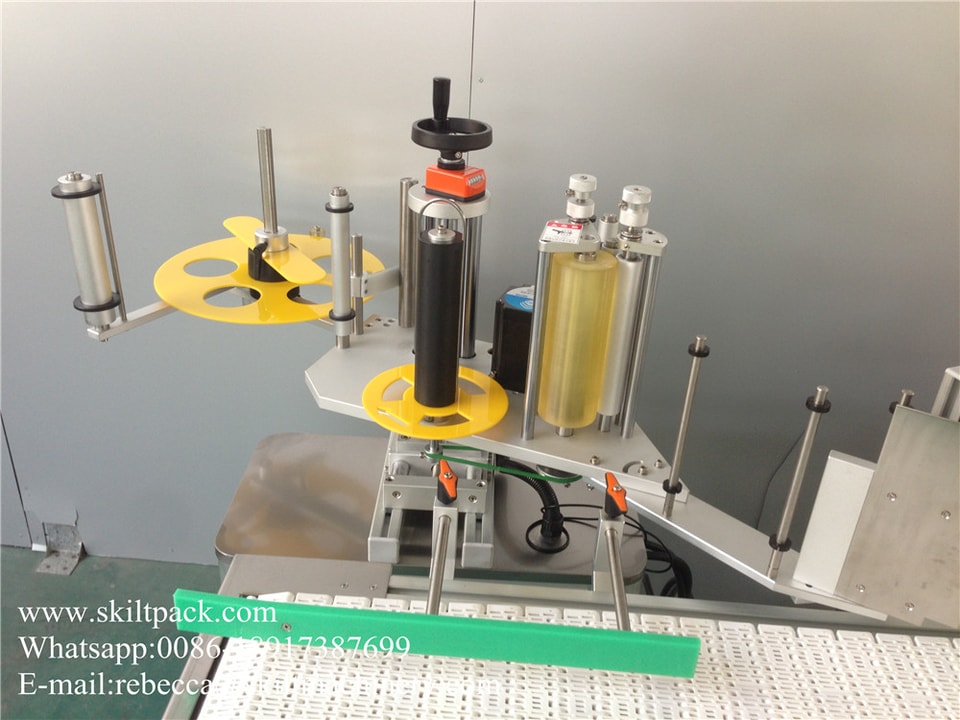

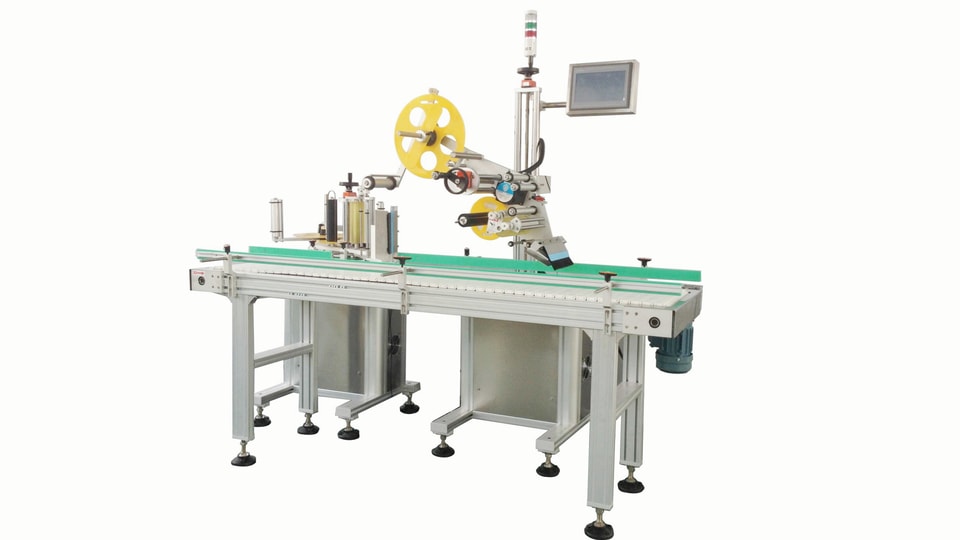

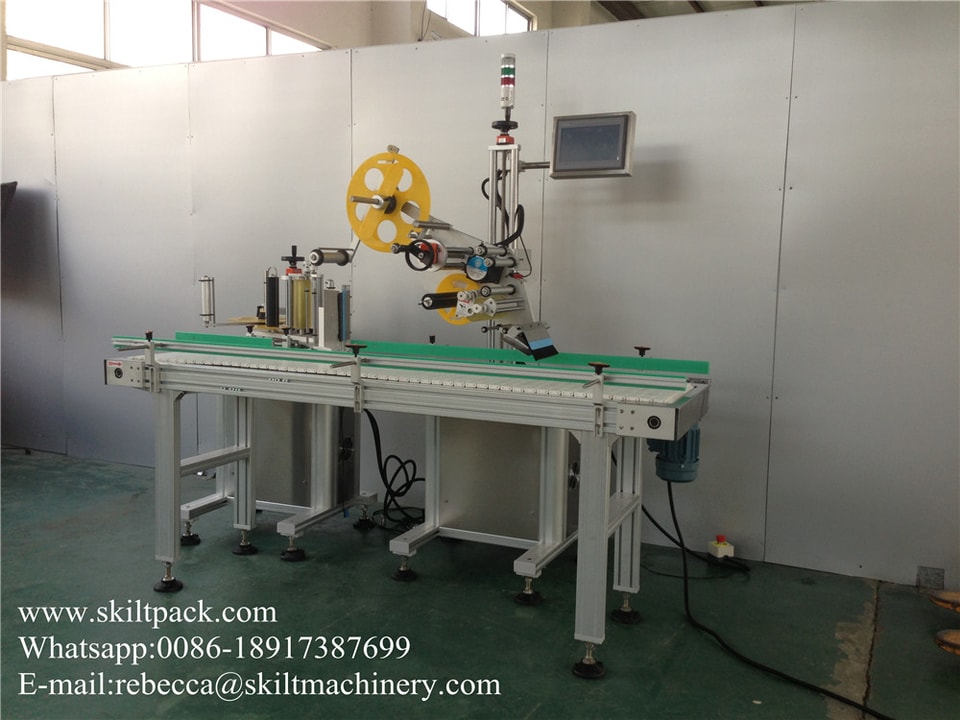

Car Battery Labeling Machine
INTRODUCTION

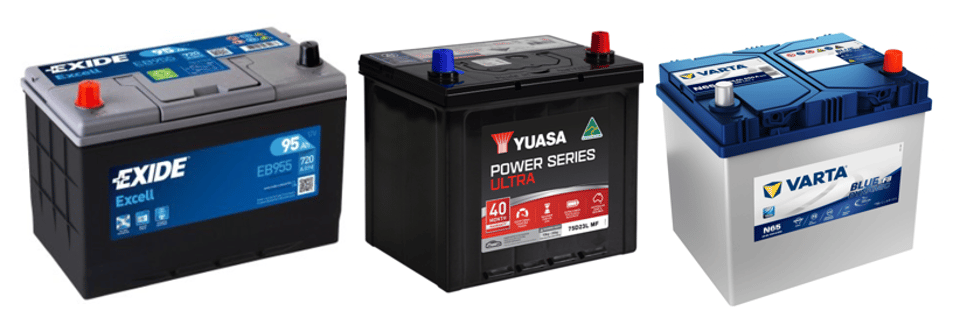

● Suit for car battery labeling on top and side two sides,
can with one label or two labels on top surface ;
CONFIGURATION
| No | Name | Brand |
|---|---|---|
| 1 | PLC control system | SIEMENS |
| 2 | Touch-screen | SIEMENS |
| 3 | Labeling engine control system | PANISONIC & GERMAN NOVEXX |
| 4 | Check opaque label sensor | German Leuze |
| 5 | Check battery sensor | Japan KEYENCE |
| 6 | Main transport motor | Switzerland ABB |
PARAMETER
| Model | DPM-SLM-A |
| Driving Model | Servo motor control system |
| Label material | Self-adhesive sticker |
| Yield（pcs/min） | 10-40pcs/min |
| Suitable label size | L:10-250mm，H:10-300mm |
| Suitable battery size | customized |
| Voltage | 110V/220V/380V |
| Machine size | 2400（L）× 1500(W)× 1500 (H) mm |
SERVICE
① Machine with two years warranty；
② Supply operation training for client workers ；
③ If with quality problem, provide technical support and supply wearing parts timely .
④ Range experienced engineer come to client company for installation；
CONTACT US
Contact Us
Shanghai SKILT Machinery Equipment Co.Ltd founded in 1998, focus on research and manufacture intelligent labeling equipment.
