Box Corner Seal Tamper-Evident Labeler

INTRODUCTION

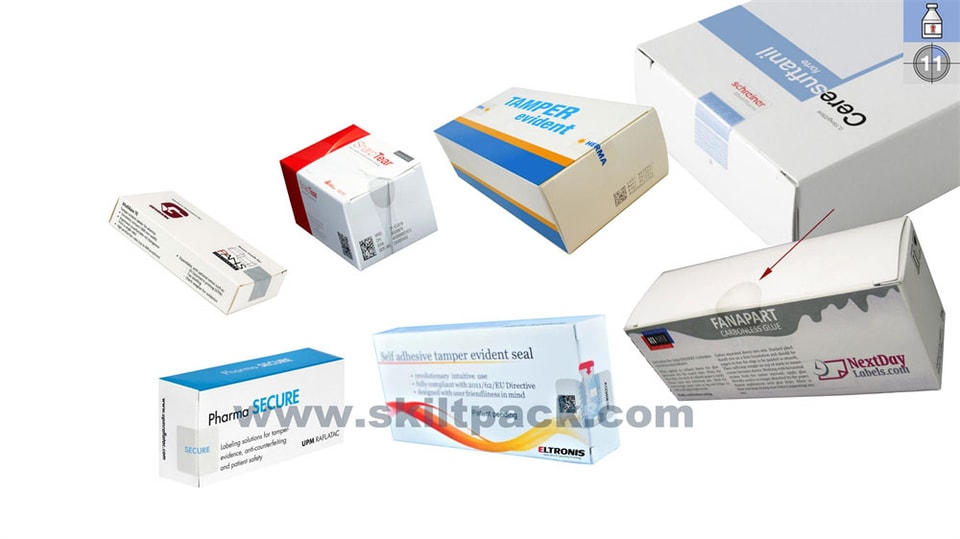

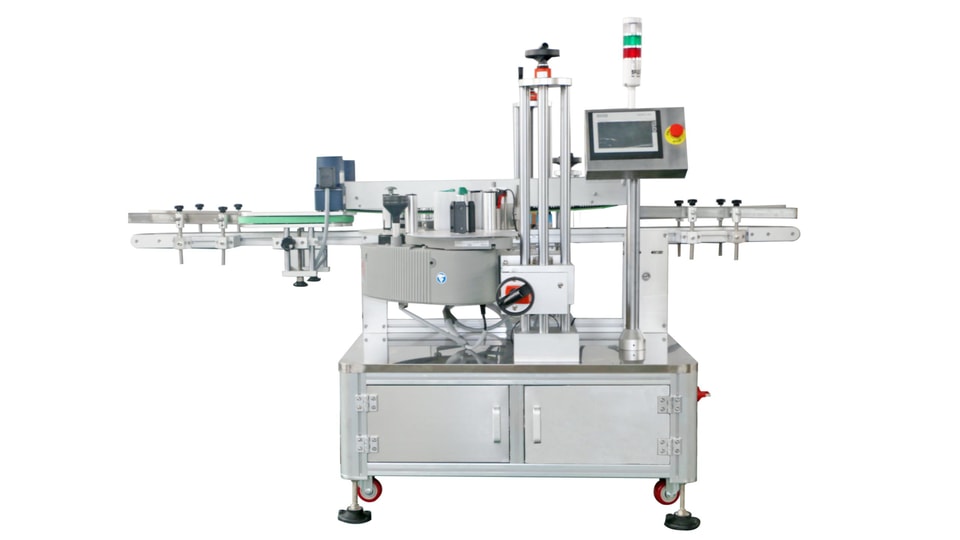

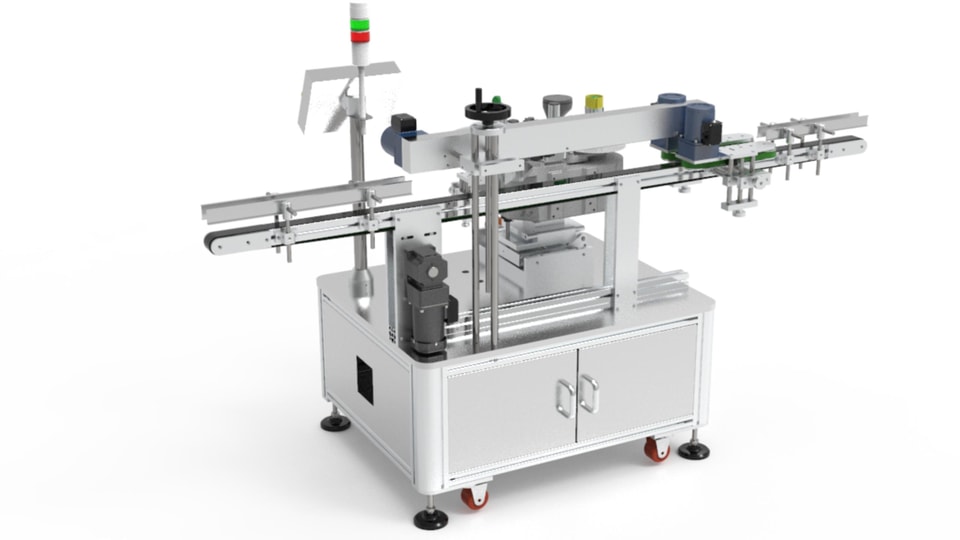

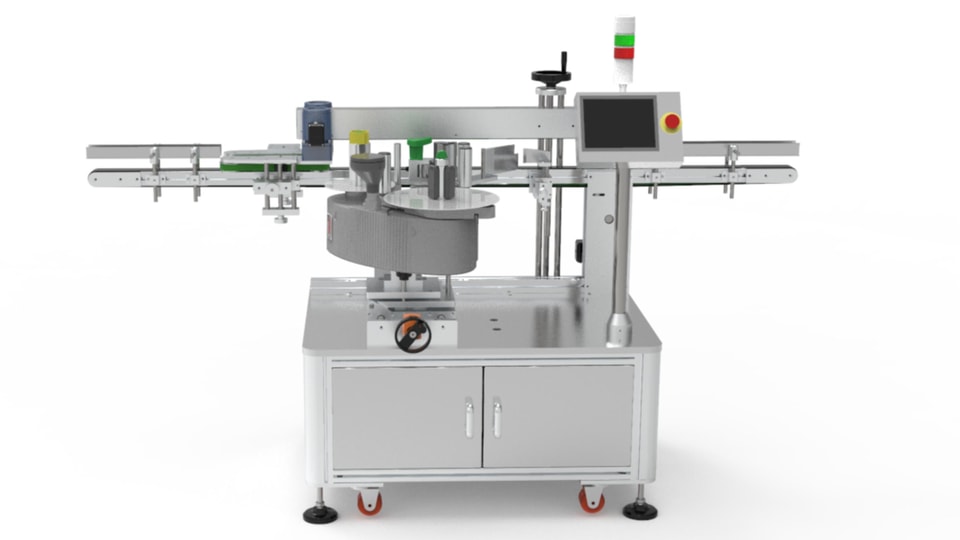

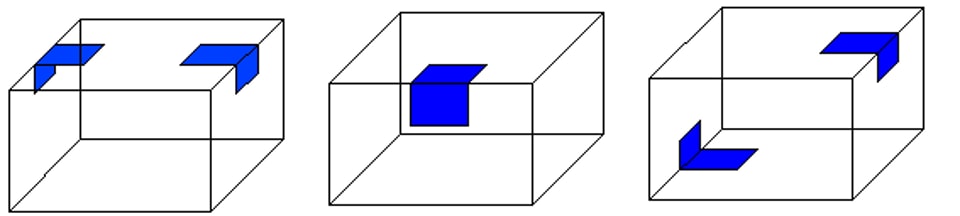

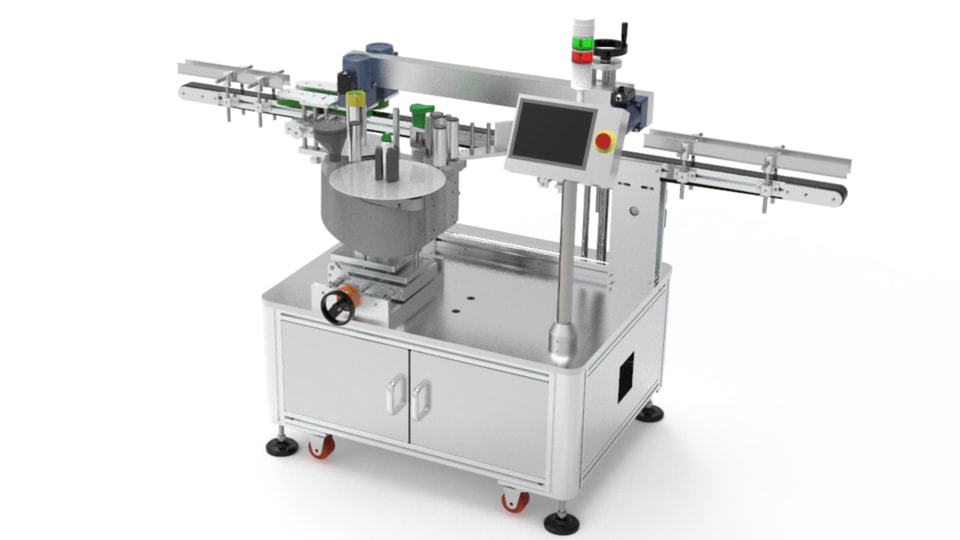

SKILT BFM Series Box Corner Seal Labeling Machine is a packaging device specifically designed for automatically affixing anti-counterfeiting, anti-counterfeiting, or sealing labels to the 90-degree right angles/edges of cardboard boxes, cartons, or packaging containers.
This type of equipment is widely used in pharmaceuticals (e.g., for tracking the distribution of medicine boxes), cosmetics, electronic products, playing cards, and high-end food packaging to ensure product sealing and tamper-evident functionality.

CONFIGURATION

No.	Component	Brand
1	PLC control system	SIEMENS
2	Touch screen	SIEMENS
3	Labeling engine	PANASONIC & German NOVEXX
4	Inverter	Delta
5	Carton detection sensor	Japan KEYENCE
6	Opaque / transparent label sensor	German Leuze / GS61
7	Main conveyor motor	ABB
8	Carton separation motor	JSCC

PARAMETER

Model	BFM-A
Driving model	Servo system & German NOVEXX
Label material	Self-adhesive sticker; opaque or transparent label
Output	50–180 pcs/min
Suitable label size	L: 15–100 mm; W: 15–100 mm
Suitable box size	L: 20–200 mm; W: 30–200 mm
Voltage	110V / 220V / 380V
Machine size	2200 (L) × 800 (W) × 1600 (H) mm
