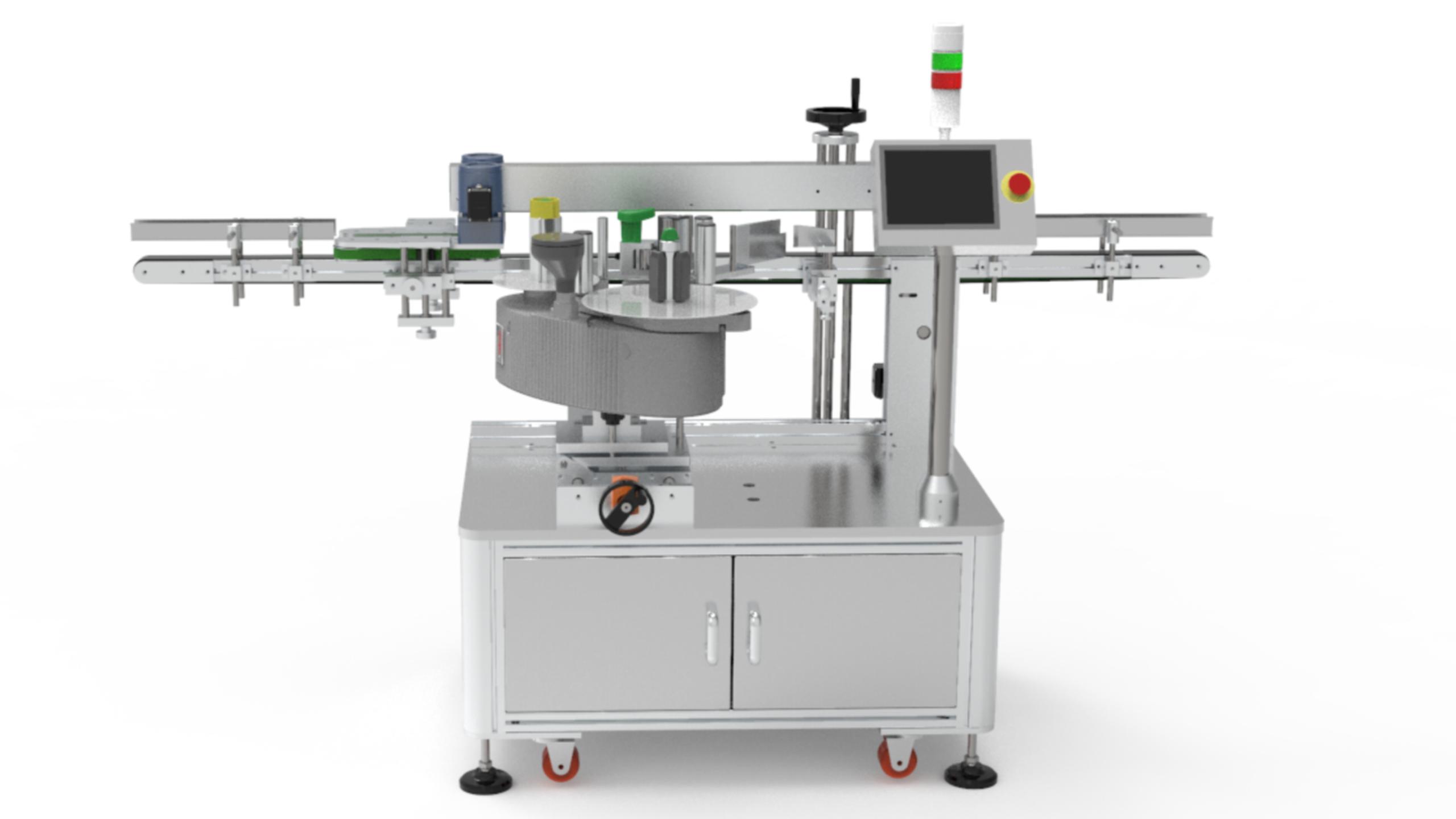

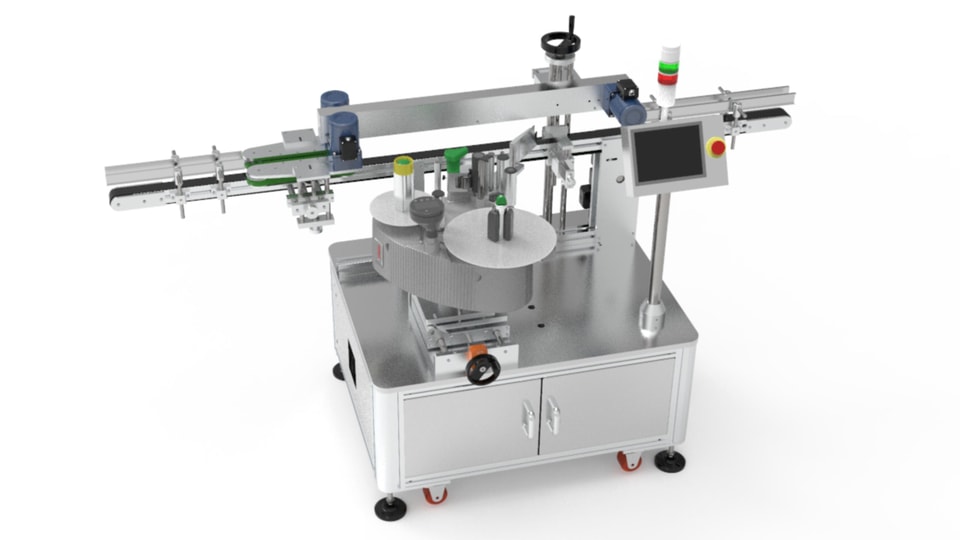

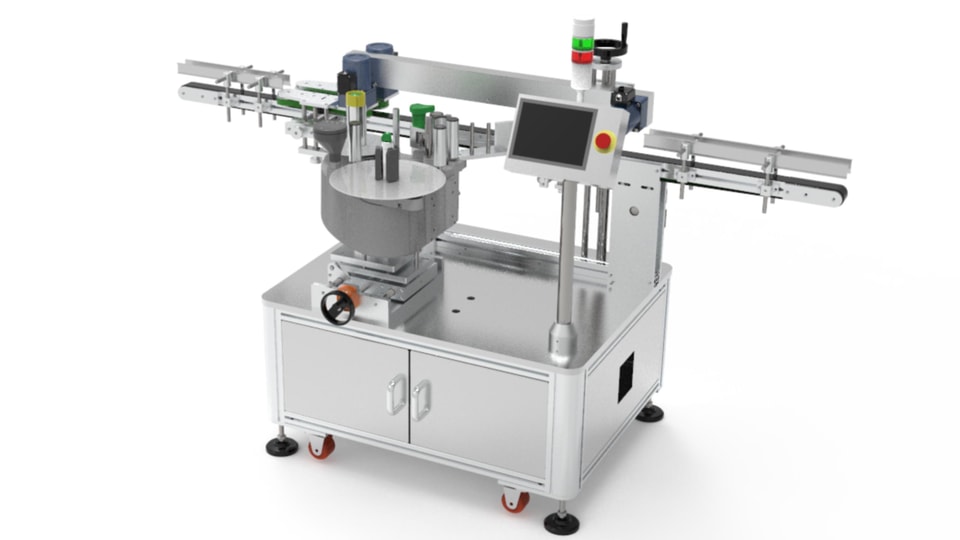

Folding Box Corner Sealing Labeler
INTRODUCTION
Automatic tamper-evident corner sealing

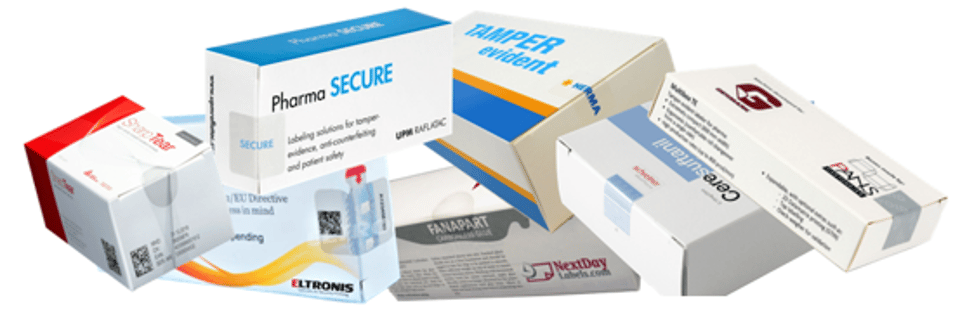

The BFM-A is designed for accurate corner-seal labeling on folding cartons and small boxes. It adds a visible tamper-evident seal to help protect product integrity and reinforce packaging security.
- One-sided or two-sided seal labeling for folding boxes
- Suitable for pharmaceutical, cosmetic and other carton packaging
- Designed for standalone use or integration with automated packaging lines
Available options
- TTO printing module
- Camera inspection system
- Reject station
CONFIGURATION
| No. | Component | Brand |
|---|---|---|
| 1 | PLC control system | SIEMENS |
| 2 | Touch screen | SIEMENS |
| 3 | Labeling engine control system | PANASONIC & German NOVEXX |
| 4 | Inverter | Delta |
| 5 | Product detection sensor | Japan KEYENCE |
| 6 | Opaque / transparent label sensor | German Leuze / GS61 |
| 7 | Main conveyor motor | ABB |
| 8 | Carton separation motor | JSCC |
PARAMETER
| Model | BFM-A |
| Driving model | Servo system & German NOVEXX |
| Label material | Self-adhesive sticker; opaque or transparent label |
| Output | 50–200 pcs/min |
| Suitable label size | L: 15–100 mm; W: 15–100 mm |
| Suitable box size | L: 20–200 mm; W: 30–200 mm |
| Voltage | 110V / 220V / 380V |
| Machine size | 2200 (L) × 800 (W) × 1600 (H) mm |
OPTIONAL
German NOVEXX Labeling Engine
High-performance labeling engine for reliable, consistent seal label application.
SERVICE
① Machine with a two-year warranty.
② Operation training for customer personnel.
③ Timely technical support and wearing parts for quality-related issues.
④ Experienced engineers available for on-site installation support.
CONTACT US
Shanghai SKILT Machinery Equipment Co.Ltd founded in 2005, focus on research and manufacture intelligent labeling equipment.
