Clamshell Container Labeler
.webp)
.webp)
.webp)
.webp)
.webp)

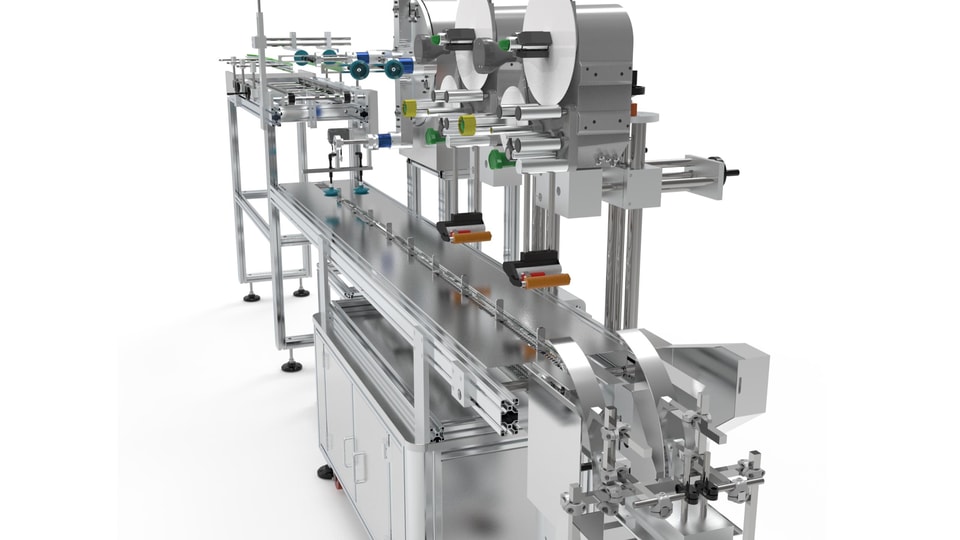

- SKILT latest R&D labeling machine, labeling on empty clamshell top or bottom surface;
- ● Can labeling with one label or two labels on product surface;
- ● With auto feeder and collection device, high efficicncy;
- Multifunctional options: Different feeding and collection methods are available to suit various box clamshell materials,sizes,and production requirements of customers
- High Precision Labeling: Equipped with advanced servo motor control,keep high labeling accuracy.

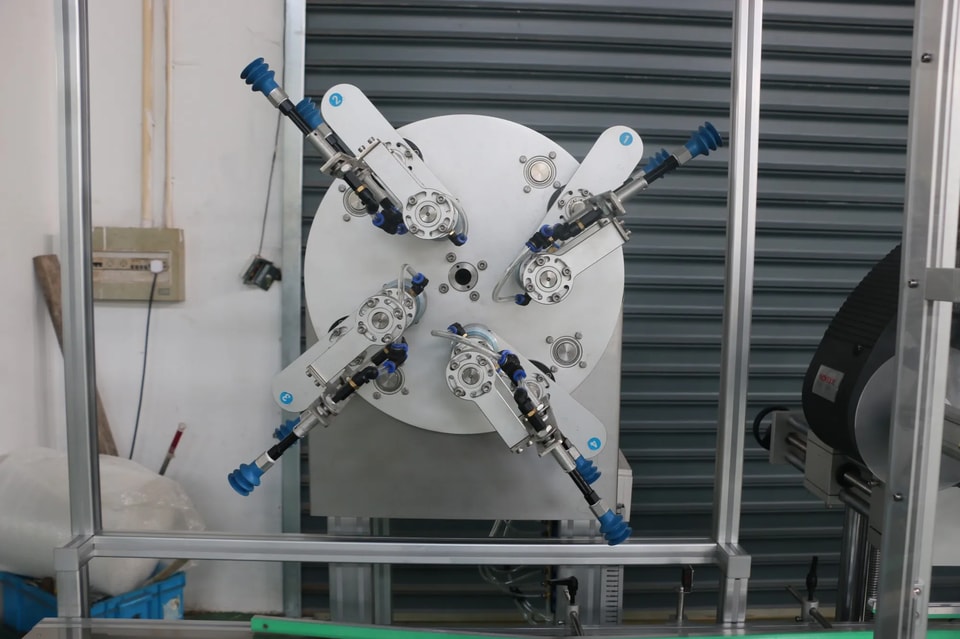

- Fully automatic operation, freeing up manpower: By integrating robotic arms and intelligent control systems, it achieves unmanned operation throughout the entire process of automatic grasping and feeding, directional arrangement and labeling, precise collection. A single machine can process 30,000-80,000 pcs/day, replacing 4-6 skilled workers and reducing reliance on manual labor by over 95%.
- Flexible adaptation to multiple packaging specifications: Compatible with mainstream pulp-molded, PET/PP plastic, and biodegradable egg cartons (6/10/12/15/30-egg packs), the servo electric cylinder + quick change gripper system allows for carton type switching in less than 5 mins.
SKILT Automatic Clamshell Labeler: Feature vs. Benefit Matrix
Feature (Technical Specification) | Advantage (Mechanical Function) | Business Benefit (ROI / Customer Value) |
All-in-One Integrated Automation | Combines automatic denesting, feeding, belt conveyor positioning, labeling, and restacking into one continuous line. | Cuts Labor Costs by 90%: Replaces 4 to 6 manual workers, eliminating human error and drastically lowering monthly operational overhead. |
High-Output Multi-Servo Control | Driven by synchronized industrial PLC microprocessors and high-torque servo electric engines. | Boosts Plant Throughput: Achieves a highly stable speed of 40 to 200+ BPM, effortlessly processing tens of thousands of boxes daily. |
Dual-Head Top & Bottom System | Dispenses, applies, and smooths two individual stickers simultaneously on opposing sides of the container in a single pass. | Doubles Production Efficiency: Eliminates the need to run containers through the conveyor belt twice, doubling your packaging speed for two-sided labeling. |
Modular C-Wrap / L-Wrap Kit | Applies precise, corner-hugging folds across split openings and clamshell lips. | Creates Tamper-Evident Seals: Adds a professional, consumer-trusted security seal that protects food freshness and prevents retail product tampering. |
Pneumatic Contouring Compensation | Utilizes adaptive sponge rollers and pneumatic blow-on arms to flatten labels over recessed steps or structural ribbing. | Zero Wrinkles or Bubbles: Guarantees a flawless, high-end look on uneven surfaces, drastically reducing product rejection rates and boosting shelf appeal. |
German NOVEXX Labeling Engine (Optional) | Integrates genuine European premium dispensing heads for maximum durability. | 24/7 Heavy-Duty Reliability: Guarantees continuous, high-speed dispensing during grueling round-the-clock manufacturing cycles with zero missed labels. |
Ultra-Gentle Material Handling | Uses optimized soft-friction paging wheels and steady-pressure vacuum belts. | Zero Substrate Damage: Safely runs fragile pulp-molded egg cartons, rigid thermoformed plastics (PET/PP), and bioplastics without crushing the boxes. |
SUS304 Stainless Steel Chassis | Built with heavy-duty, food-grade SUS304 stainless steel and anodized aluminum alloys. | Easy Cleanup & Long Lifespan: Resists rust, moisture, and chemical corrosion in demanding food processing facilities, ensuring a 15+ year machine lifespan. |
Optional Ultrasonic Sensor & TTO Kit | Upgrades the system with ultrasonic label detectors and real-time Thermal Transfer Overprinters. | Future-Proof Smart Packaging: Allows you to effortlessly run clear-on-clear transparent labels while printing dynamic expiration dates and batch codes on the fly. |
Model | DPM-SP |
Driving Mode | German Novexx labeling engine & Panisionc Servo Motor Driver |
Yield（pcs/min） | 50-180 (depends on container and label size) |
Conveyor Speed（m/min） | ≤40 |
Labeling Accuracy | ±1.0 mm |
Suitable label size | Width 15-250 mm length 15-250 mm |
Suitable labeling products size | Can customized depends on client product |
Voltage | 110V/220V/380V |
Weight（kg） | 600 |
Machine size | 5600（L） 1830 (W) 1040 (H) mm |
No | Name | Brand |
1 | HMI (Touch screen) | SIEMENS |
2 | PLC | SIEMENS |

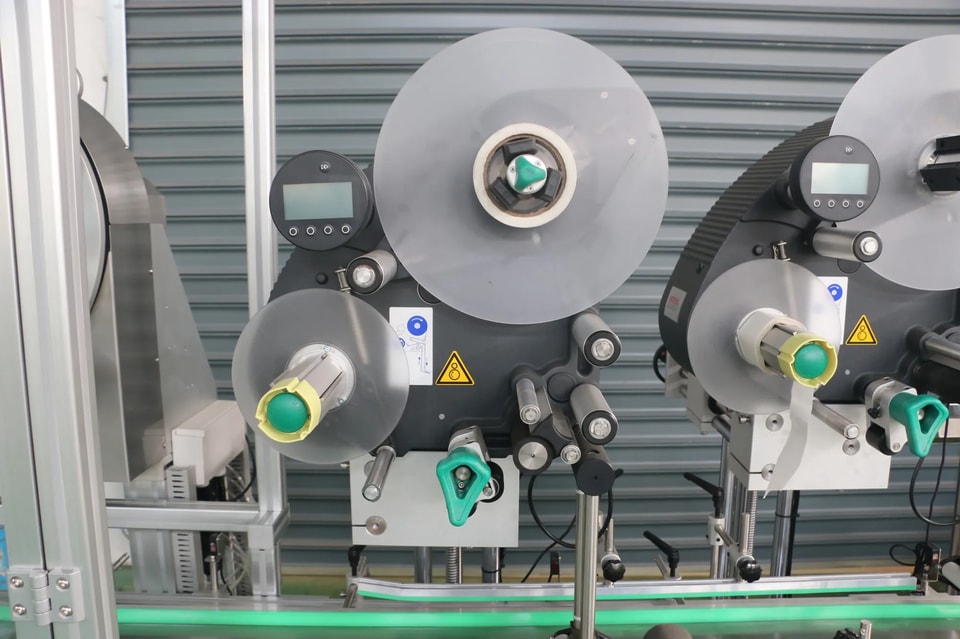

3 | Labeling engine | German NOVEXX |
4 | Sensor (check product) | Japan KEYENCE |
5 | Sensor (check label) | German LEUZE |
6 | Low voltage circuit breaker, terminal, relay | France Schneider |
7 | Converter servo motor | TaiWan DELTA） |
8 | Auto feeder device | Panisonic |
9 | Auto feeder device | Panisonic |
Auto collection device | MHMF042L1U2M |
① Machine with two years warranty；
② Supply operation training for client workers ；
③ If with quality problem, provide technical support and supply wearing parts timely .
④ Range experienced engineer come to client company for installation；
