Box/Bag C-Wrap labeling machine



.webp)
.webp)
.webp)




.webp)
.webp)
.webp)

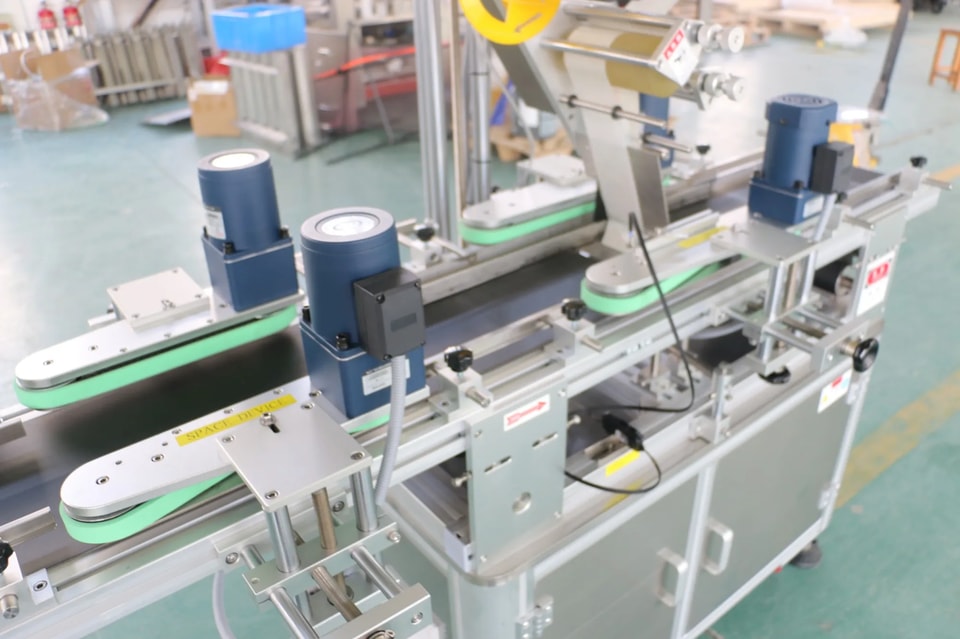

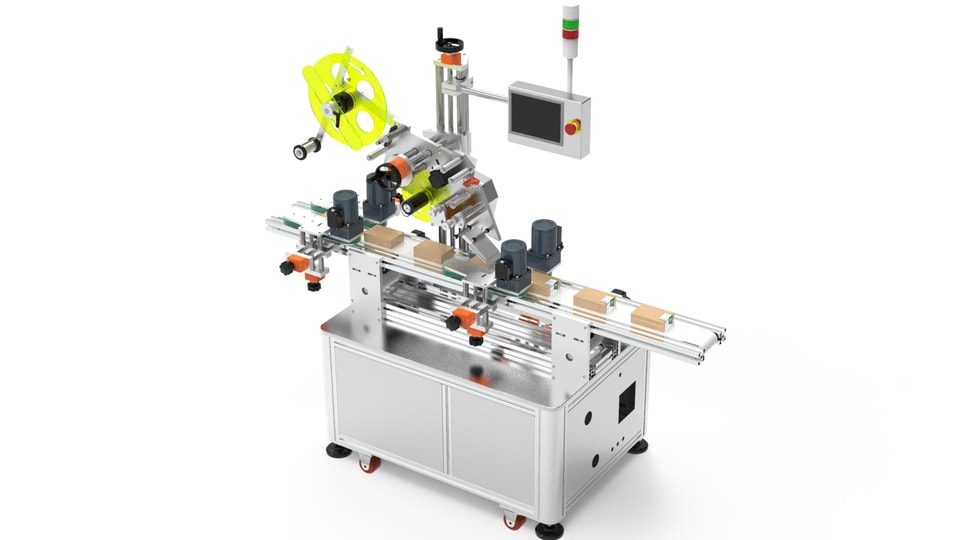

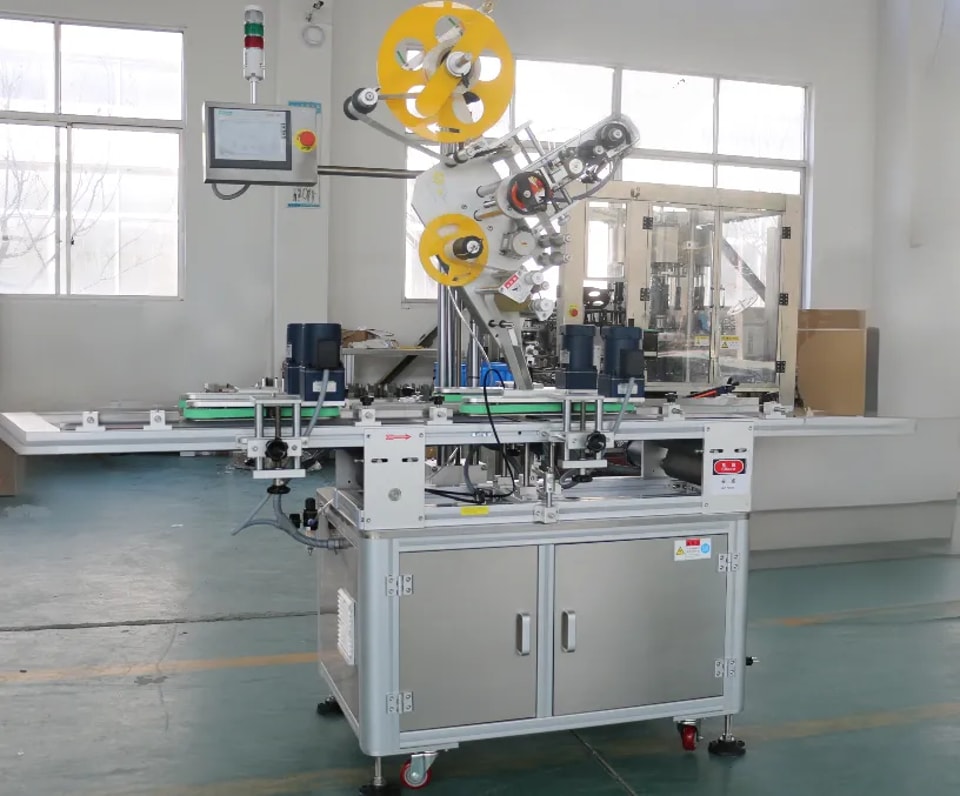

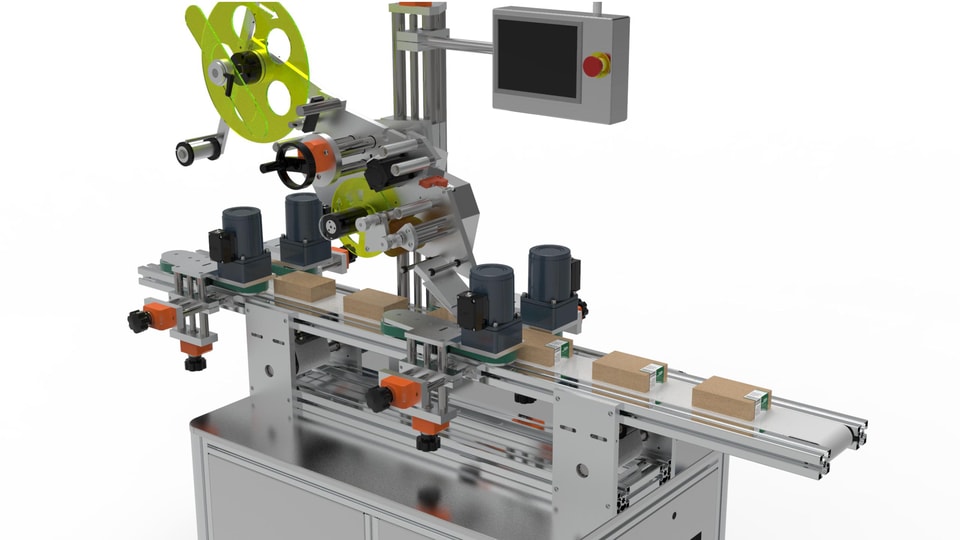

Auto C-WRAP Labeling Solution l C-wrap label applicator

The Advantage of SKILT C-wrap Labeling Machine:
- Tamper-Proof Sealing: Applies a single label across the top, front lip, and bottom of clamshells or trays, acting as a physical security lock.
- Enhanced Freshness Guarantee: Instantly signals product integrity to end consumers, which is highly preferred by global supermarkets and food retail chains.
- 3-Sided Surface Display: Replaces multiple individual stickers (top, side, bottom) with a single continuous label that wraps smoothly around edges.
- Superior Shelf Presence: Provides massive real estate for ingredient lists, barcodes, and eye-catching branding graphics all on one unified piece of media.
- Halved Consumable Spending: Eliminates the need to purchase, inventory, and manage separate top and bottom stickers.
- Reduced Equipment Footprint: Accomplishes multi-sided branding using just one labeling engine, cutting down your initial hardware investment and factory floor space.

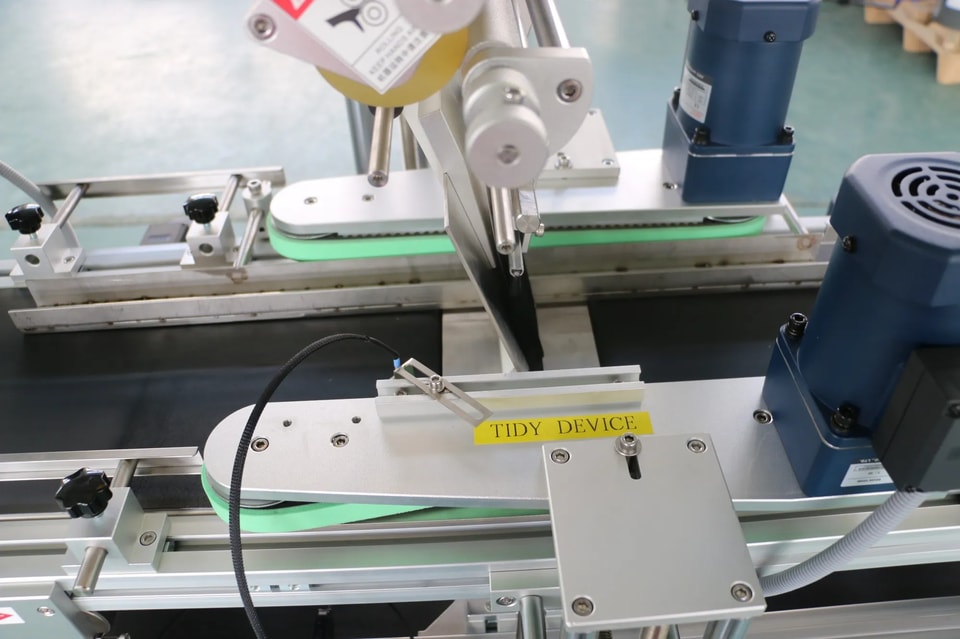

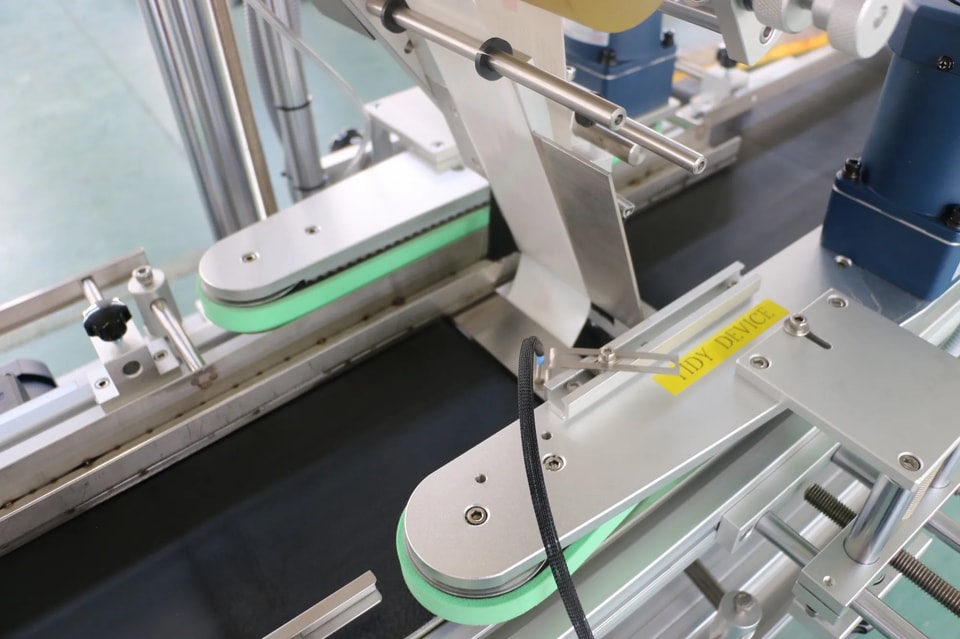

- Zero Winging or Creasing: Uses specialized pneumatic folding flaps and active secondary wipe-down rollers to crease labels sharply at a 90-degree angle.
- Uneven Surface Compensation: Adapts perfectly to the varying hinge and lip profiles of thermoformed plastic trays, pulp-molded cartons, and paperboard sleeves.
- Continuous High Throughput: Achieves a highly stable speed of 40 to 150+ units per minute, seamlessly integrating into active fruit packing or ready-meal production lines.
- Optional TTO/Inkjet Upgrades: Supports real-time thermal transfer overprinting directly onto the bottom or top portion of the C-wrap label for dynamic batch codes and expiration dates.
No | Name | Brand |
|---|---|---|
1 | HMI (Touch screen) | SIEMENS |
2 | PLC | SIEMENS |
| 3 | Labeling engine control system | Panisonic & GERMAN novexx |
4 | Sensor (check product) | Japan KEYENCE |
5 | Sensor (check label) | German LEUZE |
6 | Low voltage circuit breaker, terminal, relay | France Schneider |
7 | Frequency converter | DELTA |
8 | Conveyor motor | German JSCC |
Model | DPM-C |
|---|---|
Driving Mode | Servo motor |
Yield(pcs/min) | 10-150 (depends on box and label size) |
Labeling Accuracy | ±1.0 mm |
Suitable label size | W:10-150 mm L: 10-260 mm |
Suitable labeling products size | Can customized depends on client product |
Printer use air | 5kg/cm ² |
Voltage (can customized) | 110V/220V/380V |
Machine size | 1800(L) 800 (W) 1300 (H) mm |
1. German NOVEXX labeling engine

2.Printer device
Printing date and batch number on labels, can print 5 lines at most;

① Machine with two years warranty;
② Supply operation training for client workers ;
③ If with quality problem, provide technical support and supply wearing parts timely .
④ Range experienced engineer come to client company for installation;
