Home > Products > Square Bottle Jars Cans Labeler > Square Bottle Cans Jars Rotary Way Labeller

Square Bottle Cans Jars Rotary Way Labeller

SKILT Square bottle jars ROTARY WAY labeling machine.mp4

INTRODUCTION

High speed rotary way labeling machine

High-Speed Rotary Labeling System

Round | Square | Flat Container Labeling

This high-speed rotary way labeling machine is available with 6, 8 or 12 heads to meet different capacity requirements.

It supports wrap-around labeling for round bottles, multi-side labeling for square bottles using one label, and front-and-back labeling for flat containers.

Function Introduction

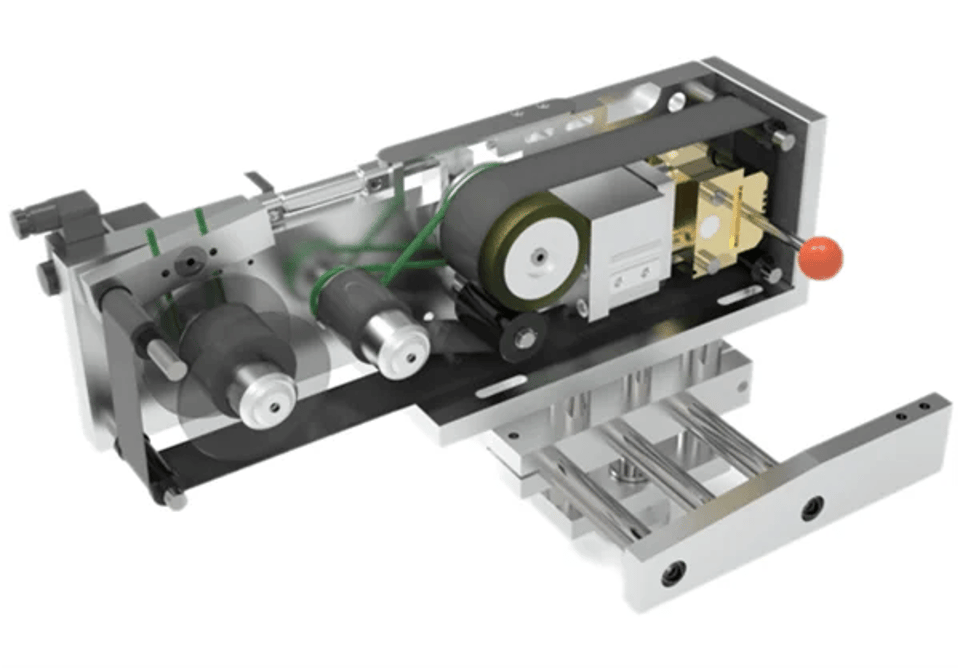

LABELING ENGINE

The main label-feeding servo motor uses a high-performance motion-control system for fast response. Independent label feeding and collection motors support smooth high-speed operation.

BOTTLE HOLDER

Bottle holders and press heads are designed according to the container size and shape, helping achieve reliable and accurate labeling results.

CONFIGURATION

No	Name	Brand
1	PLC control system	DELTA
2	Touch-screen	DELTA
3	Servo motor	DELTA
4	Servo drive	DELTA
5	Servo encoder cable	DELTA
6	Servo power cable	DELTA
7	Extended module 1	DELTA
8	Extended module 2	DELTA

PARAMETER

Model	XTHZ600-8S
Lock and press bottle heads	8 heads
Labeling control system	Servo system
Suitable label size	H: 15-150 mm, L: 20-300 mm
Suitable bottle size	Customizable according to bottle size
Yield	4,000-10,000 P/H, adjustable
Voltage	110V / 220V / 380V / 50Hz
Machine size	2400 × 1700 × 2080 mm
