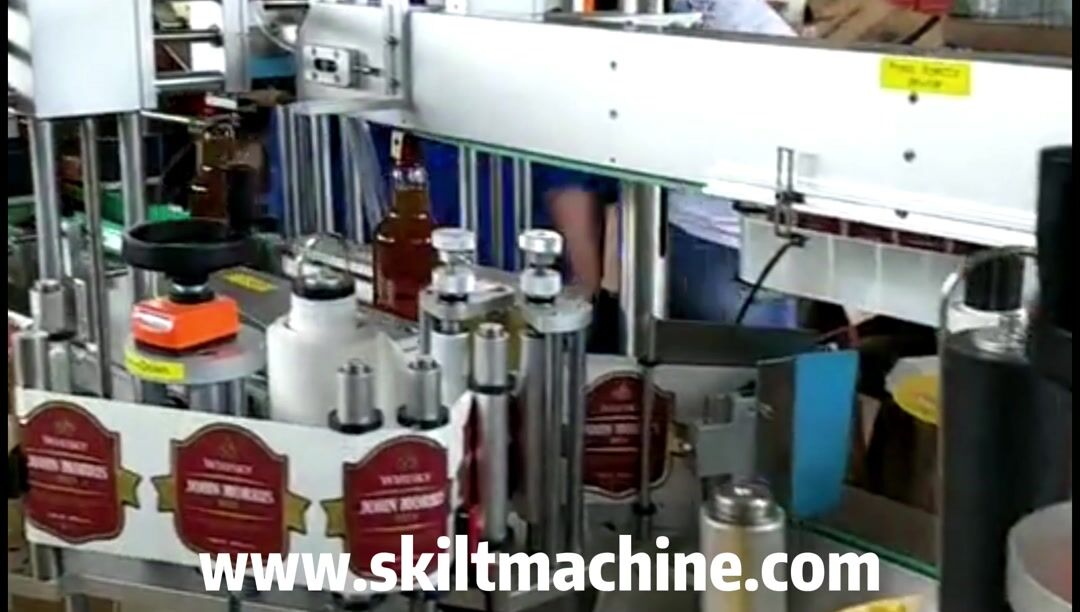

U L Shape Excise Duty Tax Stamp Labeling Machine

INTRODUCTION

Extremely wide range of applications:SKILT offers a range of Tax Stamp Labeling Systems for application in various stamp positions for box,pouches, bottles, jars, and tins.

Common types of tax stamps that can utilize this system include tax stamp for Alcohol tobacco drug and cannabis.

High Precision Labeling: Equipped with industrial-grade servo motors control system and real-time vision alignment, achieves ±0.5 mm labeling accuracy critical for excise tax and stamp duty compliance where misalignment invalidates fiscal authenticity.

Three main components: Labeler, Camera Verification System, Rejection (for products that don't meet client standard specifications.) for choose.

Our Linear Tax Stamp Labeling Systems are used in line with existing tax stamp machine or manually fed off-line to run pressure-sensitive excise stamps.

A guarded perimeter is optional to ensure the safety of production personnel.

PARAMETER

Model

DPM-S

Driving Mode

Servo control system

Yield（pcs/min）

30-100 (depends on product and label size)

Operating direction

Left or Right

Labeling Accuracy

±1.0 mm

Inner diameter of label roll

76 mm

Outer diameter of label roll

350 mm(max)

Suitable label size

W: 10-150 mm  L: 10-300 mm

Suitable labeling object size

L: 40-380mm , H:40-350mm

Printer use air

5kg/cm ²

Voltage (can customized)

110V/220V/380V

Machine size

1800（L） 800 (W)  1300 (H) mm

Electrical Configuration

No

Name

Brand

1

HMI (Touch screen)

SIEMENS

2

programmable control (PLC)

SIEMENS

3

Servo motor and driver

Panisonic

4

Sensor (check labeling objects)

Japan KEYENCE

5

Sensor (check label)

German LEUZE

6

Inverter

DELTA

7

Conveyor motor

German JSCC

8

Clamp motor

German JSCC
