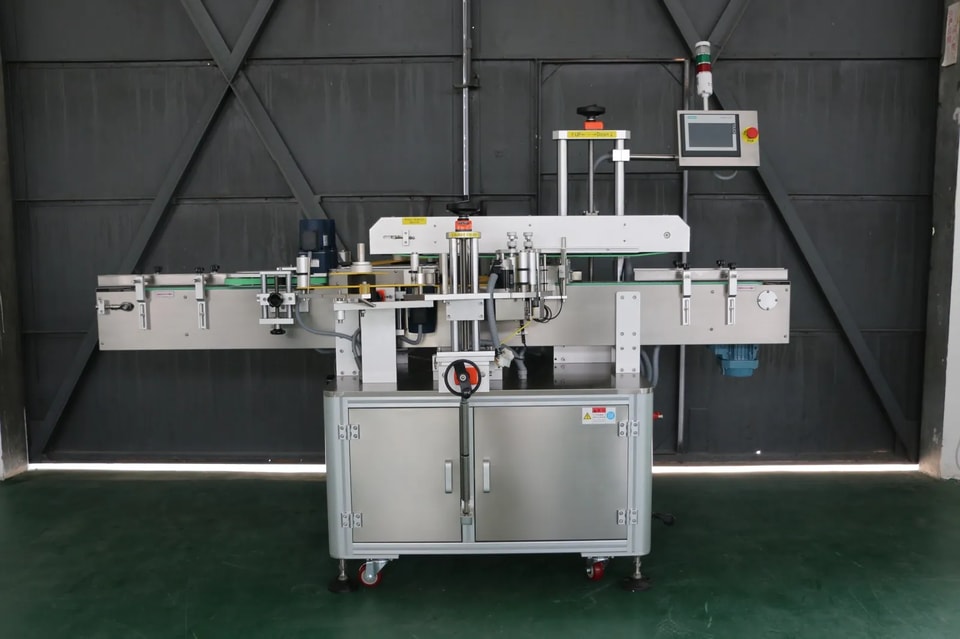

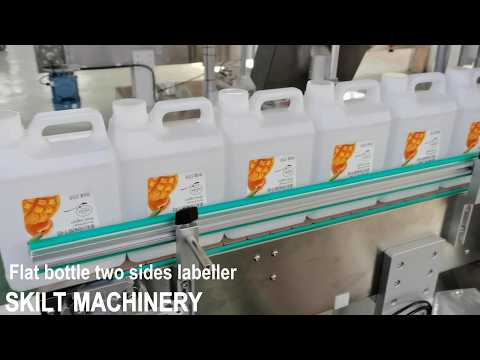

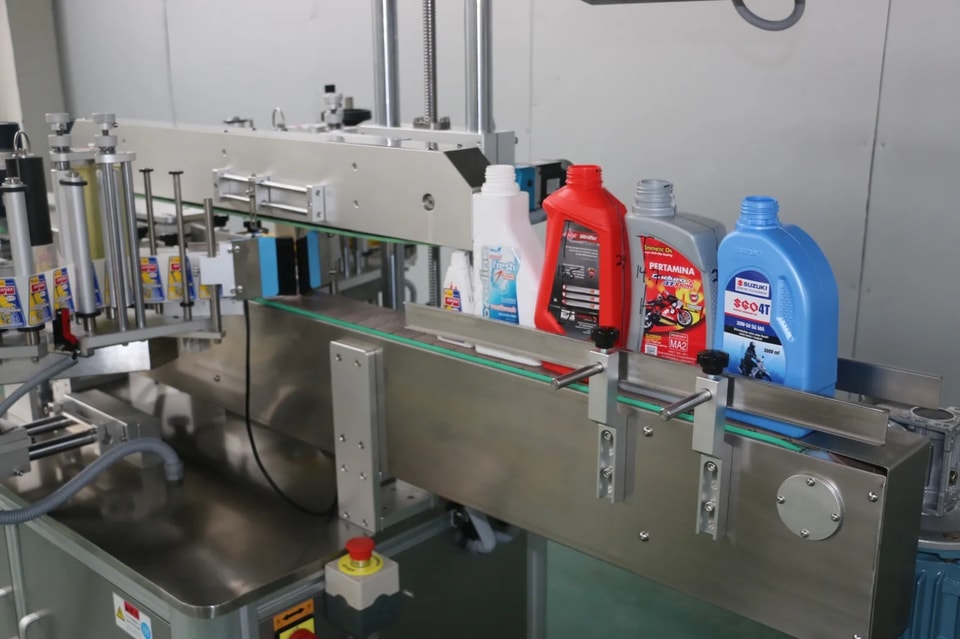

Flat Bottle Two Sides Labeler
SKILT DPM two sides labeling machine l two sides label applicator
Labeling type compatible: One side labeling • two-side labeling • Square bottle Multi sides labeling • Wrap-around labeling (optional)
Product specifications: Rectangular, flat-arched to oval, cylindrical, free-standing ；
Options :
1.Infeed and outfeed turntable with different size for choose ;
2.Belt-type separator, chain aligner ;
3.Wrap-around labeling with wrap-around belt and counterpressure plate;
4.Add 3rd applicator for one more labeling position ;
5.Printer deivce, printing date and batch number on labels directly.
| No | Name | Brand |
|---|---|---|
| 1 | PLC control system | SIEMENS |
| 2 | Touch-screen | SIEMENS |
| 3 | Labeling engine dervo motor |
Panisonic |
| 4 | Labeling engine Servo drive |
Panisonic |
| 5 | Frequency converter | Delta |
| 6 | Check bottle sensor | Japan KEYENCE |
| 7 | Check label sensor | German Leuze |
| 8 | Main transport motor | Switzerland ABB |
| 9 | Press bottle motor | German JSCC |
| Model | DLM-A & DLM-ALS204 |
| Driving Model | Servo system & German Novexx |
| Label material | Self-adhesive sticker, opaque or transparent label |
| Yield（pcs/min） | 50-180pcs/min |
| Suitable label size | L:10-250mm，H:10-300mm |
| Suitable bottle size | W:(Diameter): 20-90mm , H:30-320mm |
| Voltage | 110V/220V/380V |
| Machine size | 2400（L）× 1500(W)× 1500 (H) mm |
1. Printer device ,printing date and batch number on labels.
2. German NOVEXX labeling engine
CONTACT US
Contact US
Product Information
Quantity
Unit
Piece
Support order samples, customization, wholesale direct, and complete payment. If the product you look for does not have corresponding customized content, pls fill out the form below to contact us, and we will reply ASAP.
