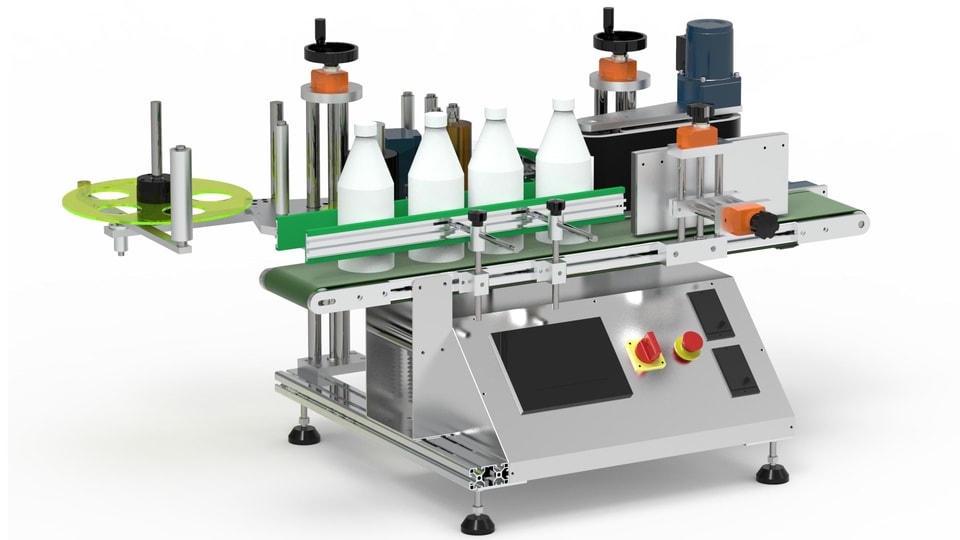

Desktop bottle/Jar/Cans Labeler

INTRODUCTION

Desktop labeler for wrap-around application


The PLM-C in mini size, can be moved easily,so you can set up exactly where you'd like,can be positioned on a tabletop or bench.

Hand wheels provide simple adjustments, enable quick set-up and easy changeover.

Widely used in food, medicine, cosmetics, cosmetic, electronic, metal, plastics and other industries
for round bottle/jars/cans labeling on body.



CONFIGURATION
NoNameBrand
1PLC control system

Delta

2Touch-screen

MCGS

3Labeling engine

Yankong

4Check label sensorJapan KEYENCE
5Check bottle sensor

Autonics

6Main transport motorJSCC
PARAMETER
ModelPLM-C
Labeling wayDesktop labeling wrap around
Label materialSelf-adhesive sticker, opaque or transparent label
Yield（pcs/min）20-60pcs/min
Suitable label size

L:10-230 mm H: 10-150 mm

Suitable bottle sizeDia: 20-150mm, H:30-260MM
Machine size

1270*1000*780mm



APPLICATION

SERVICE

① Machine with two years warranty；

② Supply operation training for client workers ；

③ If with quality problem, provide technical support and supply wearing parts timely .

④ Range experienced engineer come to client company for installation；
