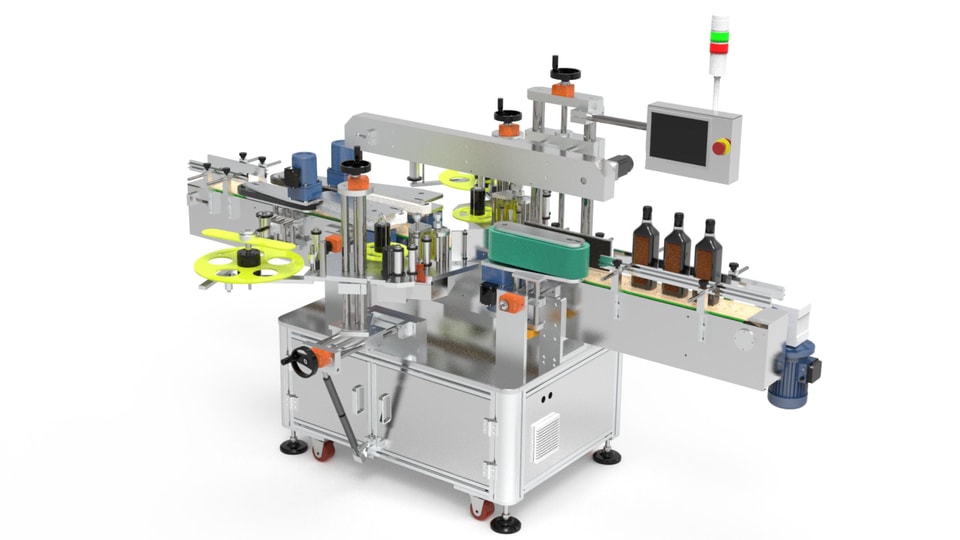

Oval/Cone-shaped Bottle Labeler
.webp)
.webp)
.webp)
SKILT Two sides labeling machine advantage :
1. Multi-Container Versatility Wide Bottle Compatibility: Handles flat, square, oval, elliptical, and slightly tapered bottles on the same system.
2. Quick Format Changeover: Features adjustable mechanical guide rails and digital scales for toolless adjustments under 10 minutes.
3. Orientation Correction: Uses a top hold-down belt and side alignment chains to straighten bottles before the label hits the surface.
4. Industrial Precision & Accuracy Zero Bubble or Creasing: Uses active dual-sponge wipe-down rollers or flexible rollers to ensure 100% flat adhesion on curved faces.
5. High Positioning Tolerances: Maintains rigid ±0.5mm to ±1.0mm alignment accuracy via integrated PLC touchscreen control.
6. Transparent Label Support: Upgradable with ultrasonic sensors to run clear-on-clear labels without missed detections.
7. Heavy-Duty Construction: Built entirely with food-grade SUS304 stainless steel and anodized aluminum for 24/7 washdown environments.
8. Low Maintenance Design: Direct-drive motors and fewer wear parts mean minimal downtime and lower long-term spare parts costs.
9. Smart Line Integrati onInline Coding Ready: Seamlessly integrates with TIJ, CIJ, or TTO printers to stamp dynamic batch codes or barcodes on either side.
10. Rejection System Compatible: Can be paired with visual camera sensors and air-blow reject gates to automatically filter out faulty containers.
| No | Name | Brand |
| 1 | PLC control system | SIEMENS |
| 2 | Touch-screen | SIEMENS |
| 3 | Labeling engine | Panisonic & GERMAN NOVEXX |
| 4 | Check bottle sensor | Japan KEYENCE |
| 5 | Check label sensor | German Leuze |
| 6 | Main conveyor motor | Switzerland ABB |
| 7 | Press bottle motor/driver | JSCC |
| Model | DLM-B |
| Driving Model | Servo system & German Novexx |
| Label material | Self-adhesive sticker, opaque or transparent label |
| Yield（pcs/min） | 50-180pcs/min |
| Suitable label size | L:10-250mm，H:10-300mm |
| Suitable bottle size | W:(Diameter): 20-90mm , H:30-320mm |
| Voltage | 110V/220V/380V |
| Machine size | 2400（L）× 1500(W)× 1500 (H) mm |
German NOVEXX labeling engine
① Machine with two years warranty；
② Supply operation training for client workers ；
③ If with quality problem, provide technical support and supply wearing parts timely .
④ Range experienced engineer come to client company for installation；
