U L Shape Excise Duty Tax Stamp Labeling Machine
.webp)
.webp)
.webp)
Extremely wide range of applications:SKILT offers a range of Tax Stamp Labeling Systems for application in various stamp positions for box,pouches, bottles, jars, and tins.
Common types of tax stamps that can utilize this system include tax stamp for Alcohol tobacco drug and cannabis.
High Precision Labeling: Equipped with industrial-grade servo motors control system and real-time vision alignment, achieves ±0.5 mm labeling accuracy critical for excise tax and stamp duty compliance where misalignment invalidates fiscal authenticity.
Three main components: Labeler, Camera Verification System, Rejection (for products that don't meet client standard specifications.) for choose.
Our Linear Tax Stamp Labeling Systems are used in line with existing tax stamp machine or manually fed off-line to run pressure-sensitive excise stamps.
A guarded perimeter is optional to ensure the safety of production personnel.
Model | DPM-S |
Driving Mode | Servo control system |
Yield（pcs/min） | 30-100 (depends on product and label size) |
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm |
Inner diameter of label roll | 76 mm |
Outer diameter of label roll | 350 mm(max) |
Suitable label size | W: 10-150 mm L: 10-300 mm |
Suitable labeling object size | L: 40-380mm , H:40-350mm |
Printer use air | 5kg/cm ² |
Voltage (can customized) | 110V/220V/380V |
Machine size | 1800（L） 800 (W) 1300 (H) mm |
No | Name | Brand |
1 | HMI (Touch screen) | SIEMENS |
2 | programmable control (PLC) | SIEMENS |
3 | Servo motor and driver | Panisonic |
4 | Sensor (check labeling objects) | Japan KEYENCE |
5 | Sensor (check label) | German LEUZE |
6 | Inverter | DELTA |

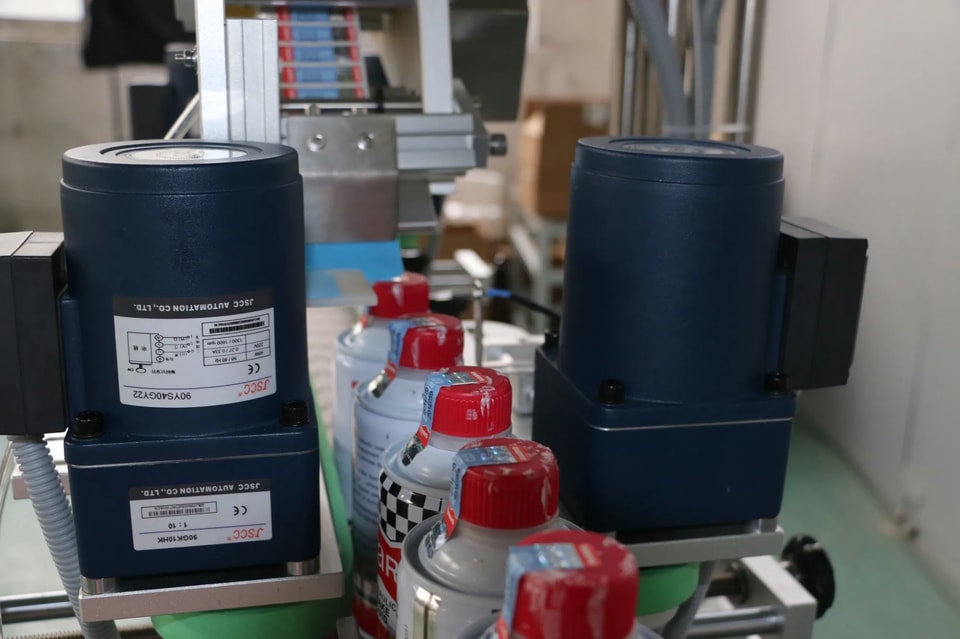

7 | Conveyor motor | German JSCC |
8 | Clamp motor | German JSCC |
.webp)
.webp)
