Hang Tag Online Printing labeler

INTRODUCTION

Tag Online Print and Apply Labeling Solution l Online Printing Labeling

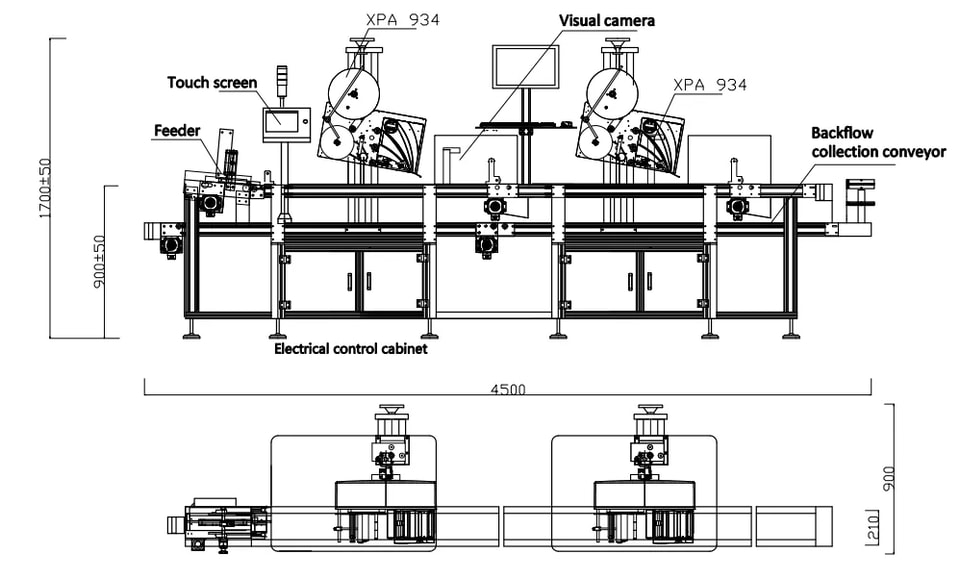

Machine detail function

  1. Paging & Feeder - Worker put a dozen tags into feeder, delivery out one by one ;
  2. Online Printing & Labeling Engine - Printing price on label, then past label on tag surface.
  3. Visual Inspection (optional) - Use BAUMER intelligent Camera, if tag without label or Labeling accuracy does not meet the requirements, unqualified tag been reject out, ensure all the tags into next process are qualified.
  4. Back Flow Collection Way (optional,can choose other collection way) - Machine customized with two layer conveyor, after finish labeling, tags delivery back to the feeder part, one worker can operation one set machine, save labor costs；

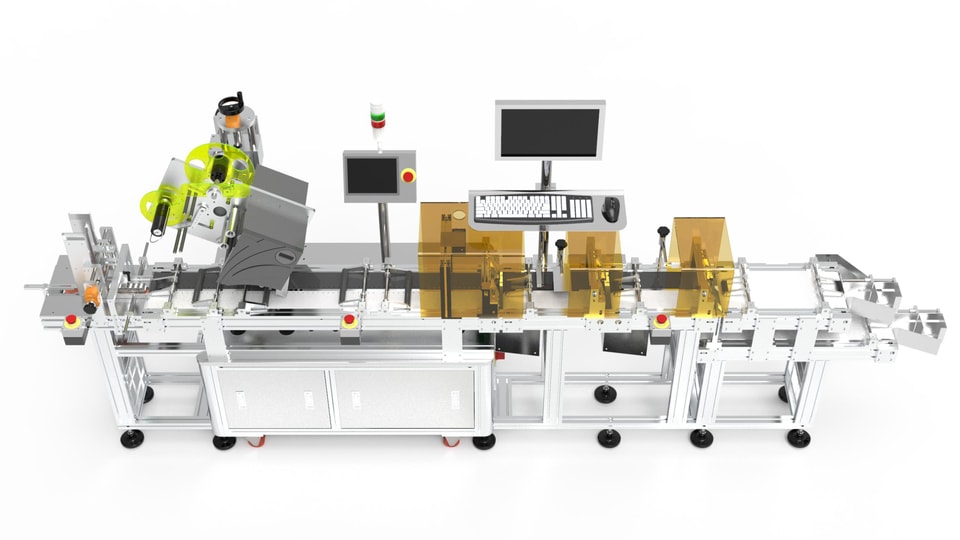

Hang tag online printing labeling machine

PRINT & APPLY ENGINE INTRODUCTION

1. NOVEXX Solutions Print & Apply Systems are designed to meet today's high standards of product labeling requiement.

2. The most compact print & apply system on the market can be flexibly integrated into any production line.

3. They are best suited for industrial environments, high and low product volumes, continuous operation, and a wide variety of label positions.

NOVEXX print and apply engine
CONFIGURATION
NoNameBrand
1PLC control systemSIEMENS
2Touch-screenSIEMENS
3Printing engineGerman NOVEXX DPM or ALX924
4Tag detection sensorGerman SICK
5Conveyor motorGerman JSCC
APPLICATION CASE

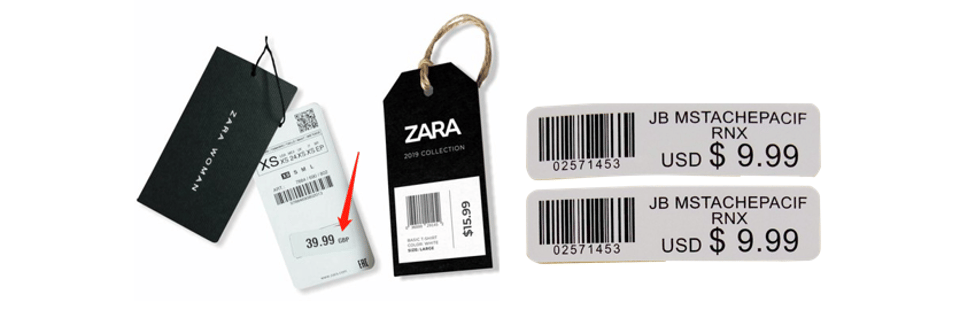

Hang tag labeling application case

LABELING REQUIREMENT :

  • ZARA tag need labeling 2 stickers on tag surface ；
  • Each tag need priting price on it ；
  • The second tag need cover on the first label ；
  • Need with count function ;
  • Need make sure each tag labeling accuracy ≤ ±1mm .

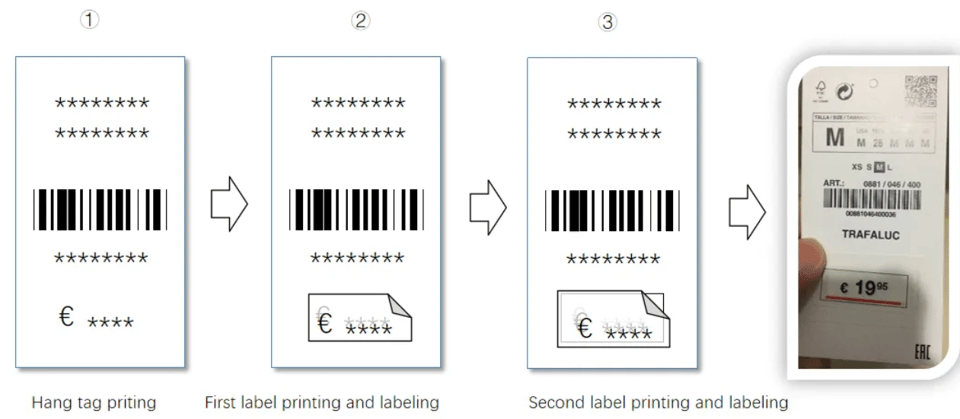

Hang tag labeling requirement
SERVICE

① Machine with two years warranty；

② Supply operation training for client workers；

③ If with quality problem, provide technical support and supply wearing parts timely .

④ Range experienced engineer come to client company for installation；
